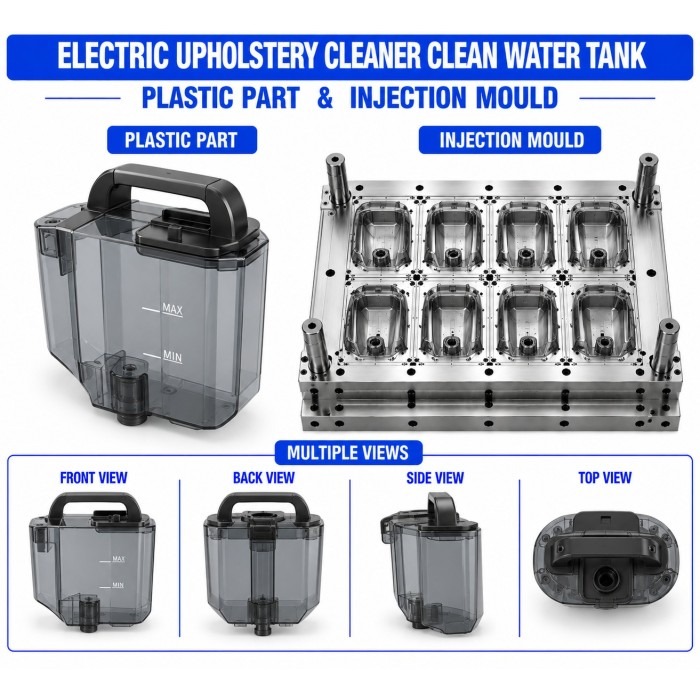

Electric Upholstery Cleaner Plastic Clean Water Tank Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd. provides Electric Upholstery Cleaner Plastic Clean Water Tank Mould and Moulding Service for manufacturing precision-moulded plastic clean water tanks used in electric upholstery cleaners, spot cleaners, carpet cleaning machines, and compact fabric cleaning equipment. The clean water tank is designed to store and supply fresh cleaning solution or water to the machine's spray and cleaning system during operation.

The tank can be developed according to the required water capacity, machine dimensions, pump arrangement, inlet and outlet connections, tank mounting position, hose routing, sealing requirements, filling arrangement, and surrounding machine structure. Injection moulding supports consistent tank dimensions, accurate connection features, controlled wall thickness, and repeatable fitment with the upholstery cleaner assembly.

Key Features

• Application-specific clean water tank design

• Customized according to electric upholstery cleaner dimensions and water capacity

• Suitable for storage of clean water or specified cleaning solution

• Provision for inlet, outlet, hose, pump, and connector interfaces

• Filling opening and cap interface where required

• Mounting bosses, screw posts, clips, tabs, ribs, and locating features

• Reinforced mounting areas for improved structural support

• Suitable sealing and connection provisions

• Controlled wall thickness for consistent moulding

• Suitable for different colours, textures, and surface finishes

• Designed for integration with pumps, hoses, filters, caps, and machine housing

• Consistent dimensions for repeatable assembly

• Suitable for OEM, ODM, and customized upholstery cleaner designs

Industrial Applications

Manufacturing Process

1. Product Design & Development

The clean water tank is developed according to the required water capacity, overall machine dimensions, pump location, tank mounting position, inlet and outlet arrangement, filling access, hose routing, and available machine space. Tank wall thickness, structural support, sealing interfaces, mounting points, liquid capacity, and surrounding component clearances are evaluated during product development.

2. Plastic Mould Design

The injection mould is designed according to the tank geometry and required mounting features, inlet and outlet connections, filling opening, cap interface, bosses, ribs, clips, tabs, and locating sections. The cavity, core, parting line, gate location, runner system, cooling channels, venting, and ejection arrangement are planned to support accurate formation of the clean water tank.

Special attention can be given to wall-thickness consistency, draft angles, shrinkage, sealing surfaces, and mould release requirements to support stable production and dimensional accuracy.

3. Mould Manufacturing

The mould can be manufactured using suitable tool steel such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, required mould life, dimensional requirements, and surface finish. CNC machining, EDM, grinding, polishing, fitting, and mould trials are performed as required.

4. Injection Moulding

The selected thermoplastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, melt temperature, holding pressure, cooling time, and cycle time are adjusted according to the selected material and tank geometry to support consistent production.

Processing parameters are controlled to help achieve uniform filling, suitable wall thickness, reduced warpage, accurate connection features, and repeatable tank dimensions.

5. Finishing & Assembly Preparation

After moulding, gates and excess plastic are removed where applicable. Inlet and outlet connections, filling openings, cap interfaces, mounting features, sealing surfaces, hose connections, ribs, and tank edges are inspected and finished as required before assembly.

Where required, the tank can be checked for leakage and proper integration with the pump, hoses, cap, filter, and upholstery cleaner housing.

6. Quality Inspection

Finished clean water tanks are inspected for dimensional accuracy, water capacity, wall thickness, connection features, mounting points, sealing surfaces, surface quality, warpage, flash, and proper fitment with the intended upholstery cleaner assembly.

Raw Materials

The final plastic grade should be selected according to water or cleaning-solution compatibility, chemical exposure, operating temperature, impact requirements, vibration, tank mounting loads, sealing requirements, and expected service life. Material compatibility should be verified against the actual cleaning chemicals intended for use in the upholstery cleaner.

Quality Control

Raw Material Inspection: Plastic grade, colour, and incoming material condition are checked before production.

Mould Inspection: Cavity, core, tank geometry, inlet and outlet features, mounting areas, cooling system, venting, and ejection system are inspected.

Dimensional Inspection: Overall dimensions, wall thickness, tank openings, mounting points, connection interfaces, and critical assembly dimensions are checked.

Capacity Inspection: The tank's specified water capacity is checked according to the approved product design.

Visual Inspection: Components are inspected for flash, short shots, sink marks, warpage, scratches, burn marks, flow marks, and other moulding defects.

Leakage Inspection: Where required, finished tanks are checked for leakage around the tank body, connections, sealing surfaces, and openings.

Connection Inspection: Inlet, outlet, hose, pump, cap, and connector interfaces are checked for correct dimensions and fitment.

Mounting Inspection: Screw posts, bosses, clips, tabs, ribs, and locating features are checked for proper integration with the upholstery cleaner structure.

Assembly Fitment Inspection: The tank is checked for proper fitment with the pump, hoses, filter, cap, machine housing, and related cleaning-system components.

Packaging Inspection: Finished components are protected against scratches, deformation, dust, and handling damage during storage and transportation.

Buyer Guide

When sourcing an Electric Upholstery Cleaner Plastic Clean Water Tank Mould and Moulding Service, buyers should provide the required tank capacity, tank dimensions, 2D engineering drawing or 3D CAD model, inlet and outlet details, hose and pump connections, filling arrangement, cap specifications, mounting arrangement, preferred plastic grade, colour, surface finish, and estimated production quantity.

For new product development, attention should be given to liquid capacity, wall thickness, chemical compatibility, leakage prevention, sealing surfaces, pump connections, hose routing, mounting strength, vibration, impact resistance, cleaning chemicals, operating temperature, filling access, and the actual installation position of the clean water tank within the upholstery cleaner.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of plastic clean water tanks with repeatable dimensions, connection features, mounting points, and surface quality.

In-House Mould Manufacturing

Mould development and manufacturing can be coordinated according to the clean water tank geometry, pump and hose interfaces, mounting requirements, production volume, and component specifications.

OEM & ODM Manufacturing

Customized clean water tanks can be developed and manufactured according to customer drawings, CAD models, samples, specifications, or electric upholstery cleaner development requirements.

Quality Assurance

Raw materials, moulds, dimensions, tank capacity, connection features, leakage performance, mounting points, surface quality, and assembly interfaces can be inspected throughout the manufacturing process.

Cost-Effective Manufacturing

Optimized mould design, suitable material selection, and controlled injection moulding processes can support economical production for development quantities as well as larger-volume requirements.

Frequently Asked Questions

1. What is an Electric Upholstery Cleaner Plastic Clean Water Tank?

It is a moulded plastic tank designed to store and supply clean water or specified cleaning solution to the spray and cleaning system of an electric upholstery cleaner.

2. Which plastic materials can be used for a clean water tank?

PP, HDPE, ABS, HIPS, PC+ABS, PBT, Nylon/PA, Glass-Filled Nylon, and other suitable engineering plastics can be considered according to the required chemical resistance, mechanical strength, dimensional stability, and operating conditions.

3. Can the clean water tank be customized?

Yes. Tank capacity, dimensions, inlet and outlet connections, filling opening, cap interface, mounting points, bosses, clips, ribs, hose connections, colour, texture, and surface finish can be customized according to the upholstery cleaner design.

4. Which steel is suitable for the clean water tank mould?

P20 Steel, H13 Steel, or S136 Steel can be selected depending on production volume, required mould life, dimensional requirements, and surface finish.

5. Can Renovator Appliances Ltd. provide both mould making and moulding?

Yes. Renovator Appliances Ltd. can support mould development, mould manufacturing, and injection moulding for customized electric upholstery cleaner plastic clean water tanks, subject to the required design and production specifications.
