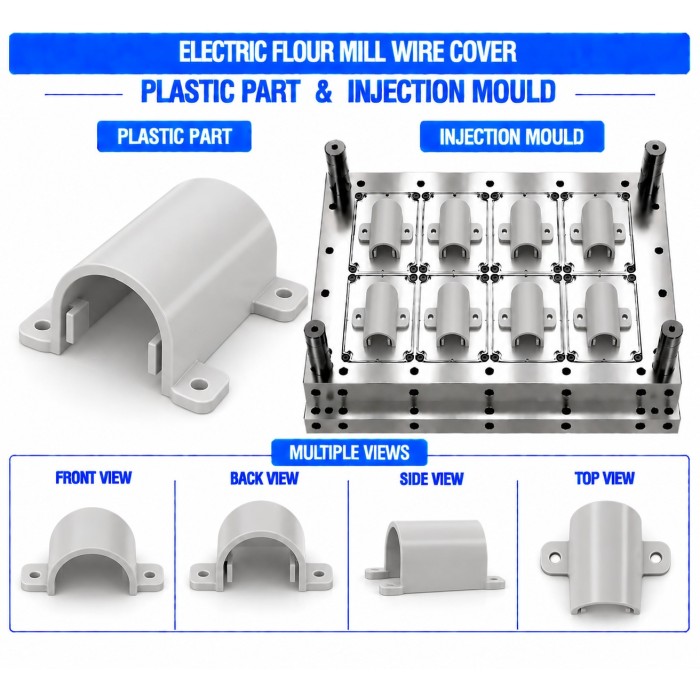

Electric Flour Mill Plastic Wire Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd. provides Electric Flour Mill Plastic Wire Cover Mould and Moulding Service for manufacturing precision-moulded plastic wire covers used in domestic and commercial electric flour mills. The wire cover is designed to protect and organize electrical wires, cable connections, and wiring sections within the appliance while helping maintain suitable separation from moving, heated, or sharp-edged components.

The plastic wire cover can be developed according to the wiring arrangement, cable routing, connector positions, mounting locations, available clearances, and flour mill housing geometry. Injection moulding supports consistent dimensions, accurate mounting features, smooth edges, and repeatable assembly.

Key Features

• Precision-engineered plastic wire cover

• Designed according to the flour mill wiring arrangement

• Protection and organized routing of internal wires and cables

• Provision for cable channels, grooves, clips, tabs, and retaining features

• Accurate clearance from motor, grinding, and other internal components

• Mounting bosses, screw posts, ribs, and locating features where required

• Rounded edges to help minimize unnecessary cable abrasion

• Reinforced mounting and retention areas

• Controlled wall thickness for consistent moulding

• Suitable for customized colours, textures, and surface finishes

• Consistent dimensions for repeatable assembly

• Suitable for OEM, ODM, and customized flour mill designs

Industrial Applications

Manufacturing Process

1. Product Design & Development

The wire cover is developed according to the flour mill's wiring layout, cable diameter, connector locations, mounting arrangement, and available internal space. Cable routing, bend radius, component clearances, wall thickness, retaining features, and assembly access are considered during product development.

2. Plastic Mould Design

The injection mould is designed according to the wire-cover geometry. The cavity, core, parting line, gate location, runner system, cooling channels, venting, and ejection arrangement are planned to accurately form cable channels, clips, ribs, mounting bosses, and retaining features.

3. Mould Manufacturing

The mould can be manufactured using suitable tool steel such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, required mould life, dimensional requirements, and surface finish. CNC machining, EDM, grinding, polishing, fitting, and mould assembly are carried out as required.

4. Injection Moulding

The selected thermoplastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, melt temperature, holding pressure, cooling time, and cycle time are adjusted according to the selected material and wire-cover geometry.

5. Finishing & Assembly Preparation

After moulding, gates and excess plastic are removed where applicable. The wire cover is checked for sharp edges, cable-contact surfaces, mounting features, retaining clips, and proper integration with the intended wiring arrangement.

6. Quality Inspection

Finished wire covers are inspected for dimensional accuracy, cable-routing geometry, mounting features, surface quality, warpage, flash, and proper fitment with the specified flour mill wiring and housing assembly.

Raw Materials

The final plastic grade should be selected according to the wire cover's proximity to electrical components, operating temperature, vibration, mechanical requirements, cable-contact conditions, and overall appliance design. Where electrical insulation or flame-performance characteristics are required, the selected material should be validated against the applicable product specifications.

Quality Control

• Raw Material Inspection: Plastic grade, colour, and incoming material condition are checked before production.

• Mould Inspection: Cavity, core, parting surfaces, cooling system, venting, and ejection arrangement are inspected.

• Dimensional Inspection: Overall dimensions, cable channels, wall thickness, mounting points, clips, and critical interfaces are checked.

• Visual Inspection: Components are checked for flash, short shots, sink marks, warpage, burn marks, scratches, sharp edges, and other moulding defects.

• Wire Fitment Inspection: Cable passages, clips, retaining features, and routing areas are checked against the specified wiring arrangement.

• Assembly Inspection: The wire cover is checked for proper mounting and suitable clearance from surrounding components.

• Packaging Inspection: Finished covers are packed appropriately to minimize scratches, deformation, dust, and handling damage.

Buyer Guide

When sourcing an Electric Flour Mill Plastic Wire Cover Mould and Moulding Service, buyers should provide the cable and wire dimensions, number of wires, wiring layout, connector locations, mounting arrangement, surrounding component dimensions, required clearances, 2D engineering drawing or 3D CAD model, preferred plastic grade, colour, surface finish, and expected production quantity.

For new product development, special attention should be given to cable diameter, routing path, bend radius, retention method, mounting strength, clearance from the motor and other heat-generating components, electrical environment, operating temperature, and accessibility for assembly or servicing.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of precision plastic wire covers with repeatable dimensions, smooth cable-contact surfaces, and reliable assembly fitment.

In-House Mould Manufacturing

Mould development and manufacturing can be coordinated according to the wire-cover geometry, cable-routing requirements, production volume, and dimensional specifications.

OEM & ODM Manufacturing

Customized wire covers can be developed and manufactured according to customer drawings, CAD models, samples, or approved product specifications.

Quality Assurance

Raw materials, moulds, dimensions, cable-routing features, mounting points, appearance, and assembly interfaces can be inspected throughout the manufacturing process.

Cost-Effective Manufacturing

Optimized mould design, suitable material selection, and controlled injection moulding processes can support economical production for different order volumes.

Frequently Asked Questions

1. What is an Electric Flour Mill Plastic Wire Cover?

It is a moulded plastic component used to protect, organize, and route electrical wires or cables inside an electric flour mill.

2. Which plastic materials can be used for a wire cover?

PP, ABS, HIPS, PC+ABS, PBT, Nylon/PA, POM/Acetal, Glass-Filled Nylon, and suitable flame-retardant plastics can be considered according to the required mechanical, thermal, electrical, and environmental properties.

3. Which steel is suitable for the wire cover mould?

P20 Steel, H13 Steel, or S136 Steel can be selected depending on production volume, required mould life, dimensional requirements, surface finish, and mould design complexity.

4. Can the wire cover be customized according to the flour mill wiring?

Yes. Cable channels, wire-routing paths, clips, retaining features, mounting points, clearances, ribs, colour, texture, and surface finish can be customized according to the approved flour mill design.

5. Can Renovator Appliances Ltd. provide both mould making and moulding?

Yes. Renovator Appliances Ltd. can support mould development, mould manufacturing, and injection moulding for customized electric flour mill plastic wire covers, subject to the required design and production specifications.
