CT Scan Machine Plastic X Ray Tube Outer Housing Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

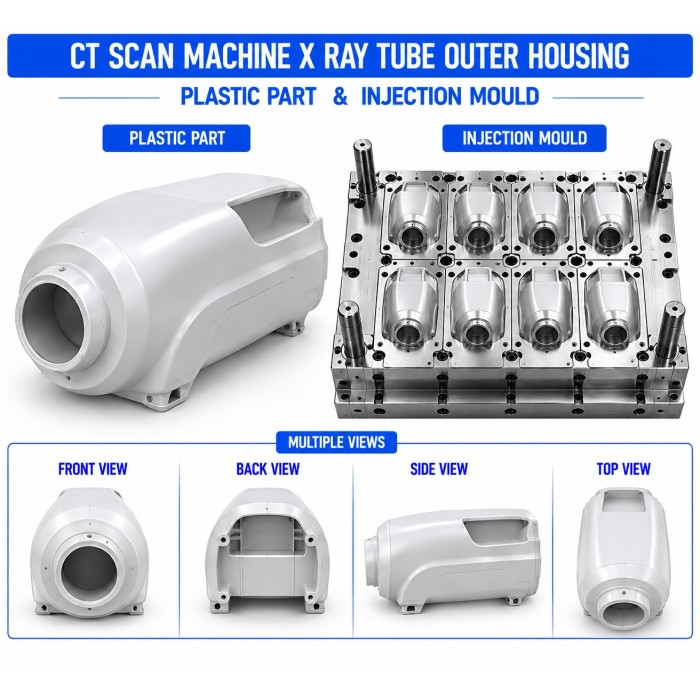

Renovator Appliances Ltd manufactures precision Plastic Injection Moulds and provides injection moulding solutions for CT Scan Machine Plastic X Ray Tube Outer Housing components used as external protective and finishing enclosure sections around designated CT X-ray tube assemblies.

The outer housing provides a moulded plastic enclosure around the specified tube assembly and helps integrate the tube-related assembly with surrounding covers, mounting structures, cooling components, cables, connectors, and gantry interfaces. The plastic outer housing can be customized with mounting bosses, locating ribs, cable passages, connector clearances, ventilation provisions, clips, snap-fits, and service-access features according to the equipment design.

The mould is developed according to the X-ray tube assembly dimensions, outer profile, curvature, mounting arrangement, internal clearance, cooling requirements, cable routing, and adjoining equipment geometry. The plastic outer housing is intended as an external enclosure component and should not be treated as the primary radiation-shielding housing unless specifically engineered and validated for that purpose.

Key Features

• Precision injection moulding for CT X-ray tube outer housings

• Customized outer housing profile and dimensions

• Accurate fitment around the designated tube assembly

• Controlled internal clearance

• Integrated mounting bosses and locating features

• Screw-fit, clip-fit, or snap-fit assembly options

• Cable and connector clearance provisions

• Cooling and ventilation openings where required

• Reinforcing ribs for improved housing rigidity

• Controlled wall thickness for dimensional stability

• Smooth and consistent external surface

• Customized colour, texture, and surface finish

• Suitable for prototype and volume production

• Supports OEM and ODM manufacturing requirements

Industrial Applications

Manufacturing Process

1. Product Design & Development

The CT Scan Machine Plastic X Ray Tube Outer Housing is developed according to the customer's CAD drawing, 3D model, physical sample, X-ray tube assembly, or equipment specifications.

The design is reviewed for overall dimensions, outer profile, curvature, mounting locations, internal clearance, cooling requirements, cable routing, connector access, service openings, and interfaces with surrounding gantry components.

Particular attention is given to maintaining adequate clearance around the tube assembly and ensuring that the plastic housing does not interfere with specified tube mounting, cooling, movement, service, or electrical interfaces.

2. Plastic Mould Design

The injection mould is designed around the complete outer-housing geometry and required assembly features. The mould incorporates suitable parting lines, draft angles, gate locations, cooling channels, ejector arrangements, cores, inserts, and shrinkage allowances.

For large or curved housing sections, balanced filling and cooling are considered to minimize warpage, distortion, sink marks, and dimensional variation. Mounting bosses, locating ribs, cable openings, ventilation features, and adjoining-cover interfaces are positioned according to the complete tube assembly.

3. Mould Manufacturing

Mould components are manufactured using suitable mould steels such as P20 Steel, H13 Steel, or S136 Steel, depending on production quantity, expected mould life, selected plastic material, surface-finish requirements, and component complexity.

CNC machining, EDM, drilling, grinding, polishing, precision fitting, and mould assembly are used to achieve accurate cavity and core geometry.

4. Injection Moulding

The selected plastic material is processed using controlled injection moulding parameters. Injection temperature, filling speed, injection pressure, holding pressure, cooling time, and cycle time are adjusted according to the selected plastic grade and outer-housing design.

Controlled processing helps maintain housing dimensions, profile accuracy, mounting-feature alignment, internal clearances, ventilation openings, and consistent surface quality.

5. Finishing & Assembly Preparation

After moulding, the X-ray tube outer housings are inspected for flash, gate marks, sink marks, short shots, sharp edges, warpage, and surface imperfections.

Mounting bosses, screw holes, locating features, cable passages, connector clearances, ventilation openings, and adjoining housing interfaces are checked before assembly. Where required, the moulded housing can be prepared for labels, identification markings, or surface decoration.

6. Quality Inspection

Finished CT Scan Machine Plastic X Ray Tube Outer Housing components are checked for overall dimensions, outer profile, internal clearance, mounting alignment, cooling and ventilation interfaces, cable clearance, surface finish, and fitment with the designated tube assembly.

Trial assembly can be performed to verify proper alignment, fastening, service access, clearance from the tube assembly, and interference-free integration with surrounding CT scanner components.

Raw Materials

The final plastic grade should be selected according to operating temperature, mechanical requirements, cooling conditions, cleaning and disinfectant exposure, dimensional stability, electrical environment, flame-performance requirements, and applicable medical-device specifications.

Quality Control

Renovator Appliances Ltd performs quality checks throughout mould development and injection moulding production. Inspection can include:

• Plastic material and grade verification

• Mould cavity dimensional inspection

• Overall housing dimensions

• Outer profile and curvature inspection

• Internal tube-assembly clearance

• Wall-thickness consistency

• Mounting-boss position

• Screw-hole dimensions where applicable

• Locating-rib accuracy

• Clip and snap-fit accuracy

• Cable-opening dimensions

• Connector clearance

• Cooling and ventilation opening dimensions

• Adjoining-cover alignment

• Service-access inspection

• Warpage and deformation inspection

• Sink-mark and short-shot inspection

• Flash and burr inspection

• Surface-finish inspection

• Colour consistency

• Tube assembly trial fitment

• Housing assembly inspection

• Gantry integration and clearance verification

• Batch-to-batch dimensional consistency

Buyer Guide

When ordering a CT Scan Machine Plastic X Ray Tube Outer Housing Mould and Moulding Service, buyers should provide the X-ray tube assembly design, CAD drawing, 3D model, physical sample, or complete equipment specifications. Important requirements include:

• X-ray tube assembly dimensions

• Outer housing dimensions

• Housing profile and curvature

• Required internal clearance

• Mounting-hole locations

• Screw, clip, or snap-fit requirements

• Mounting-boss requirements

• Cable and connector locations

• Cooling and ventilation requirements

• Service-access requirements

• Surrounding gantry clearance

• Required wall thickness

• Operating temperature

• Plastic material and grade

• Flame-performance requirements where applicable

• Colour and surface texture

• Surface-finish requirements

• Expected production quantity

• Required mould life

• Prototype or mass-production requirements

• OEM or ODM assembly requirements

For CT scanner equipment, the Plastic X Ray Tube Outer Housing must be evaluated as part of the complete medical-device assembly for mechanical fitment, thermal conditions, cooling performance, electrical clearances, cleaning requirements, EMC considerations, radiation safety, and applicable regulatory requirements. A plastic outer housing should not be represented as radiation shielding unless it has been specifically engineered, tested, and validated for that function.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd provides controlled plastic injection moulding for customized medical-equipment housings requiring accurate dimensions, internal clearances, mounting features, cooling provisions, and consistent surface quality.

In-House Mould Manufacturing

In-house mould manufacturing provides better control over housing geometry, mounting features, cooling, ejection, surface finish, and dimensional accuracy.

OEM & ODM Manufacturing

Customized CT Scan Machine Plastic X Ray Tube Outer Housing moulds and moulded components can be developed according to customer drawings, tube samples, assembly layouts, and complete equipment specifications.

Quality Assurance

Dimensional, visual, material, assembly, clearance, and fitment checks help maintain consistent outer-housing quality and integration with the complete CT scanner assembly.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding support efficient production for prototype development, pilot production, and regular commercial quantities.

Frequently Asked Questions

1. What is a CT Scan Machine Plastic X Ray Tube Outer Housing?

It is a moulded plastic external enclosure component designed to provide protective and finished housing coverage around a designated CT X-ray tube assembly.

2. Can the outer housing be customized according to a specific X-ray tube assembly?

Yes. The housing dimensions, outer profile, internal clearances, mounting points, cooling openings, cable passages, connector clearances, and adjoining interfaces can be customized according to the tube assembly.

3. Can the housing include cooling and mounting features?

Yes. Ventilation openings, cooling interfaces, screw bosses, mounting holes, locating ribs, clips, snap-fits, and cable passages can be incorporated according to the equipment design.

4. Which plastic materials can be used for the X-ray tube outer housing?

ABS, PC+ABS, PC, PBT, PP, HIPS, flame-retardant ABS, flame-retardant PC+ABS, and suitable engineering plastics can be considered according to mechanical, thermal, dimensional, cleaning, surface-finish, and equipment requirements.

5. Can Renovator Appliances Ltd manufacture both the mould and moulded X-ray tube outer housing?

Yes. Renovator Appliances Ltd can provide mould design, mould manufacturing, injection moulding, prototype development, quality inspection, and volume production support for customized CT Scan Machine Plastic X Ray Tube Outer Housing components.
