Product Overview

Room Heater Plastic Parts are precision injection-moulded components used in electric room heaters for housing, airflow management, control interfaces, heating-element support, wiring protection, mounting, and internal structural applications.

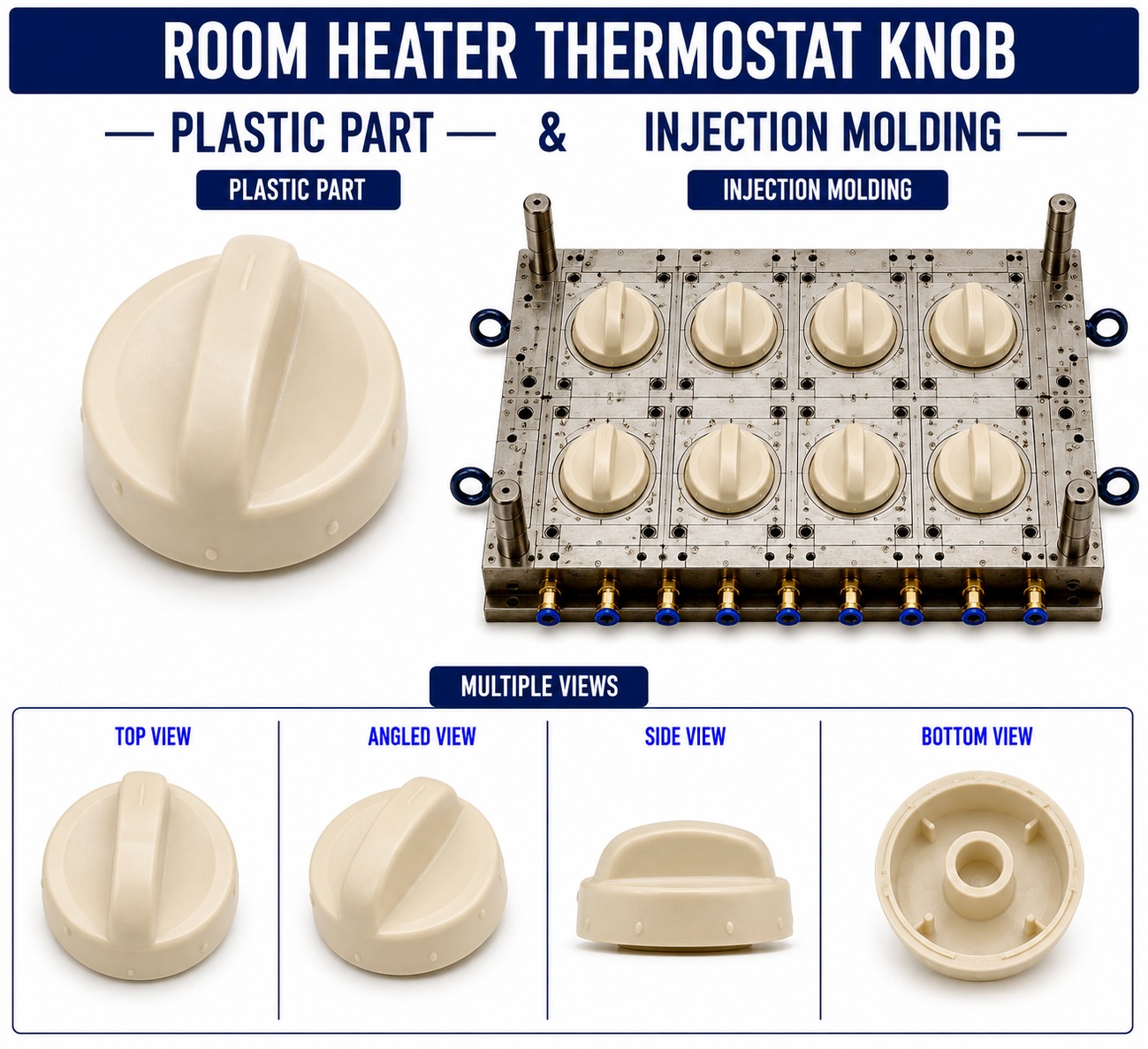

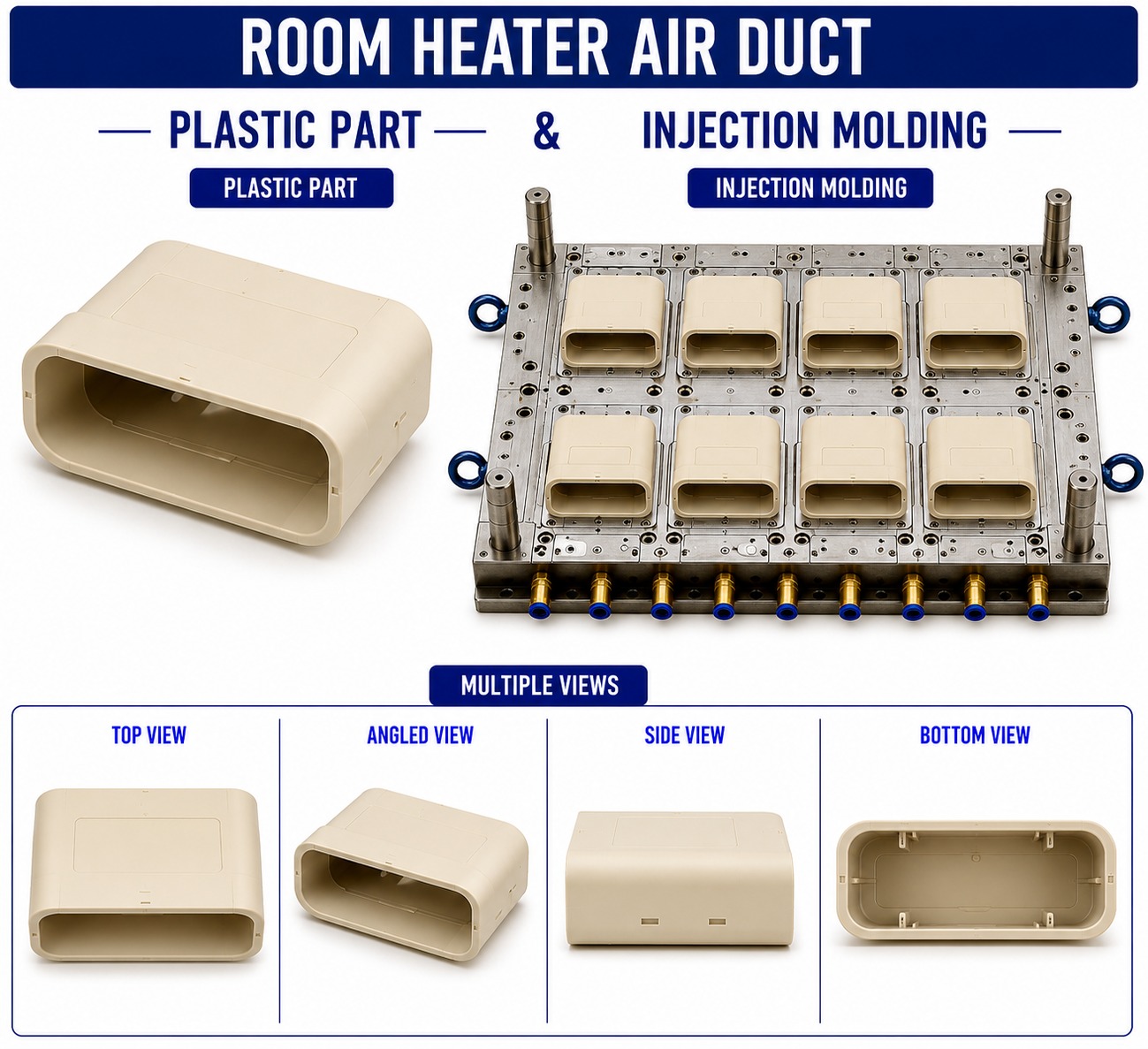

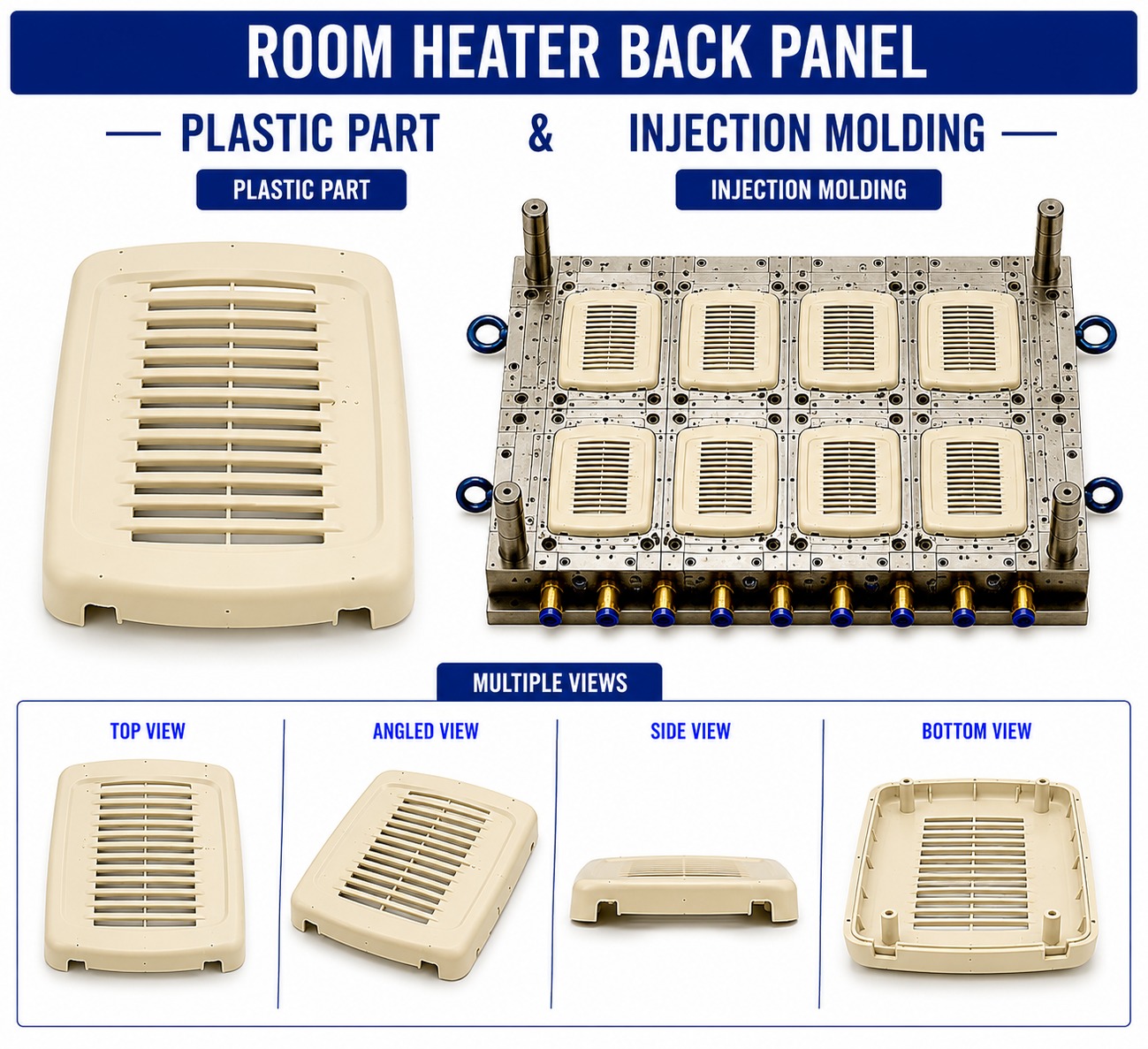

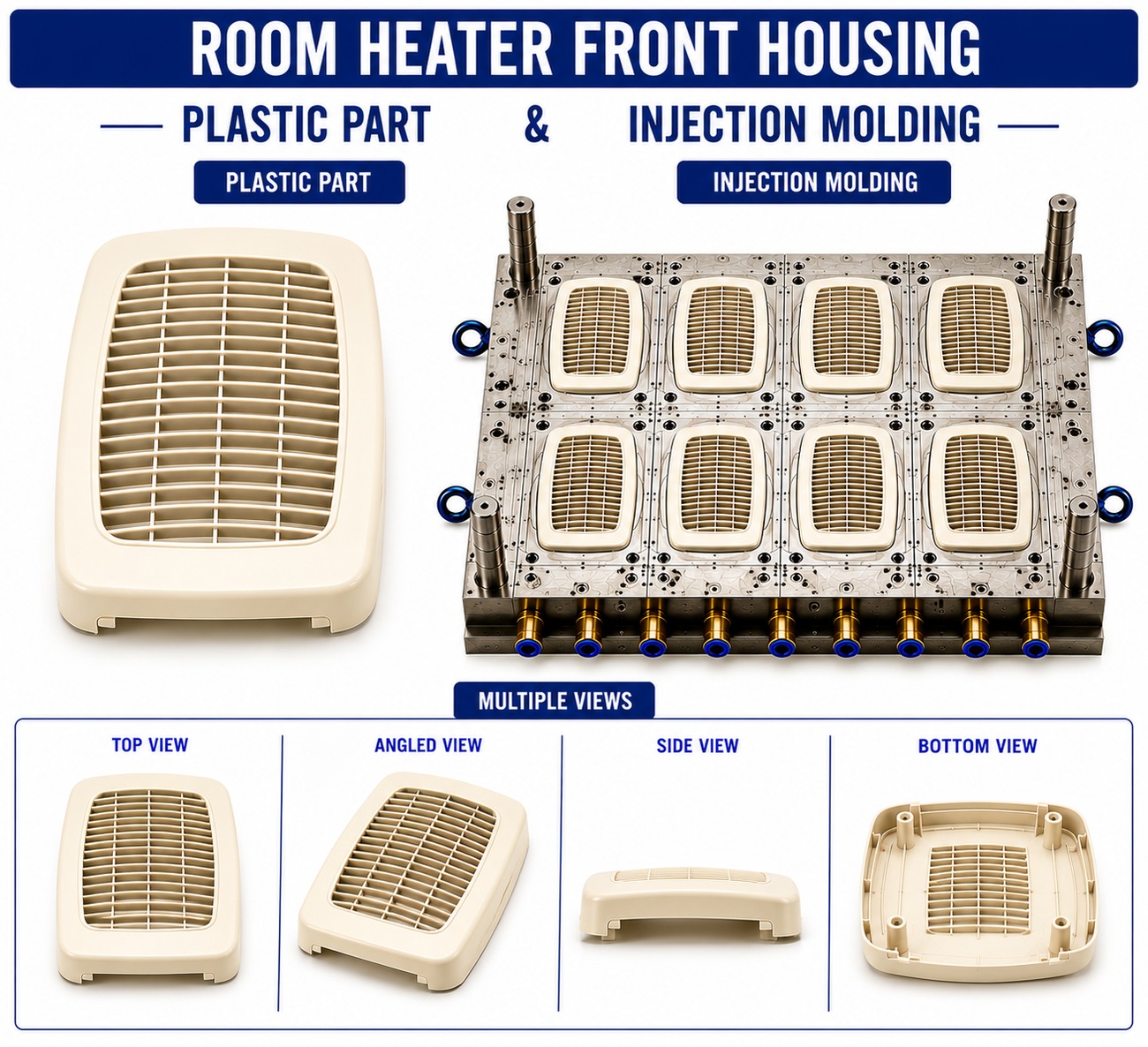

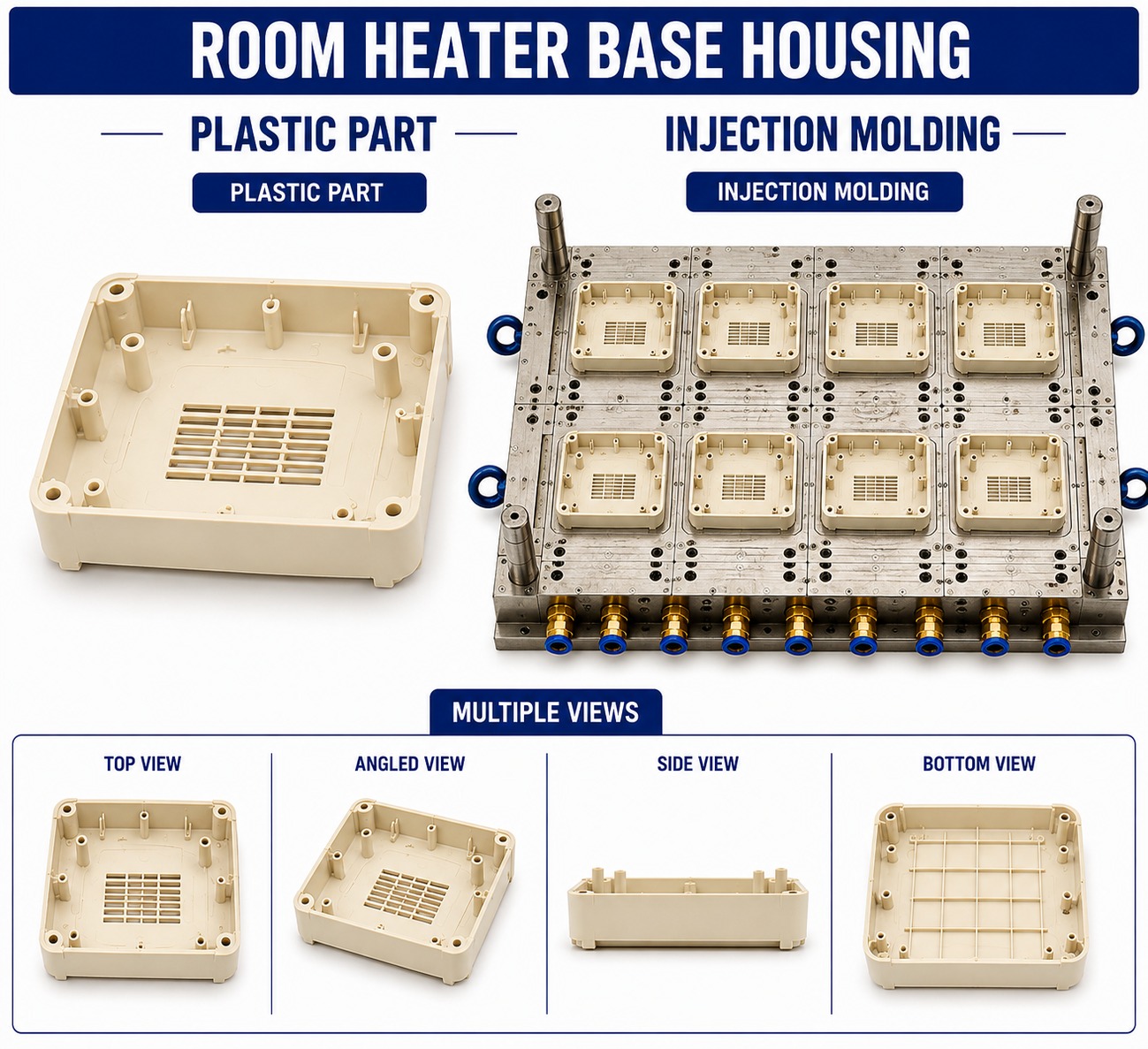

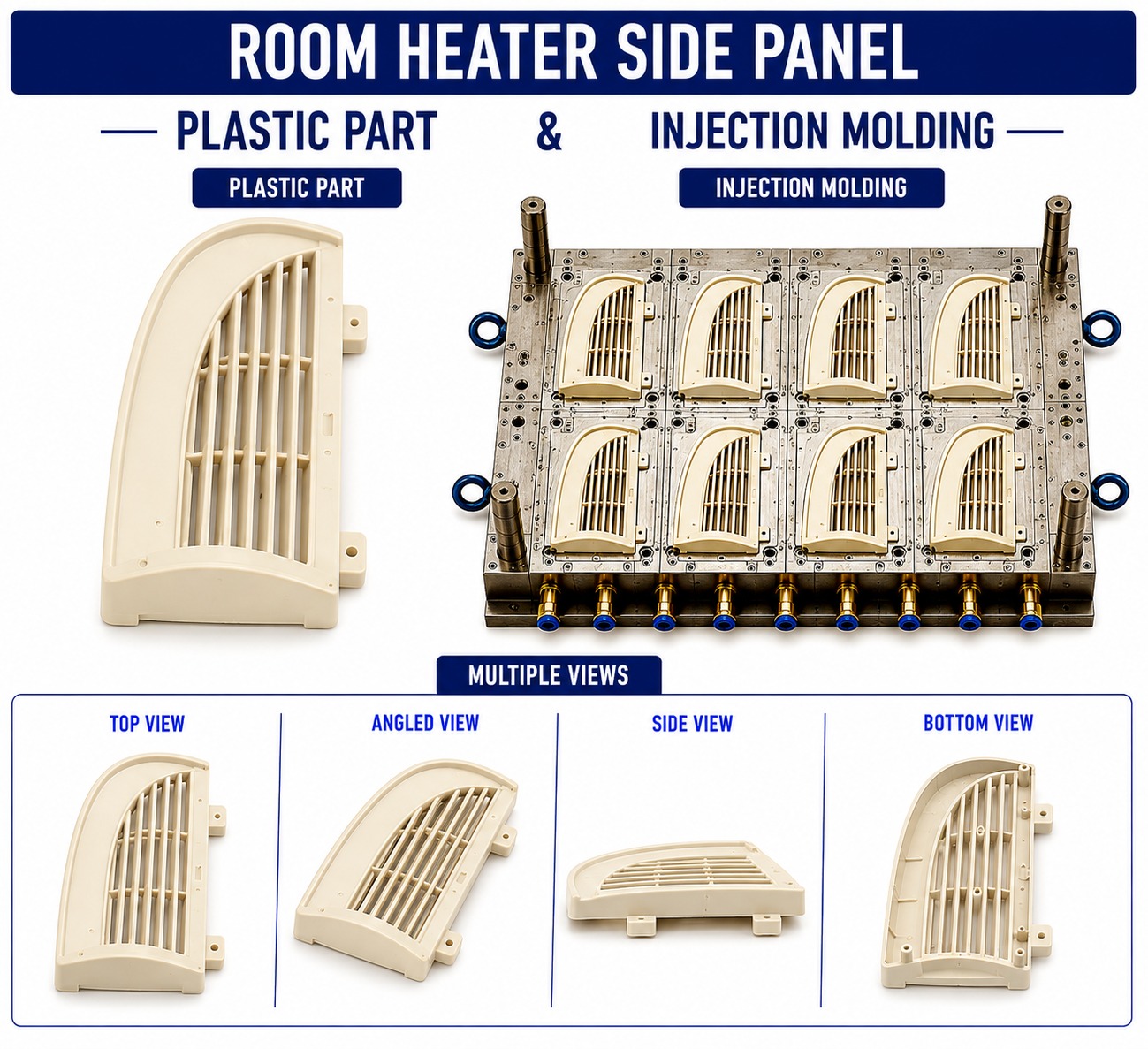

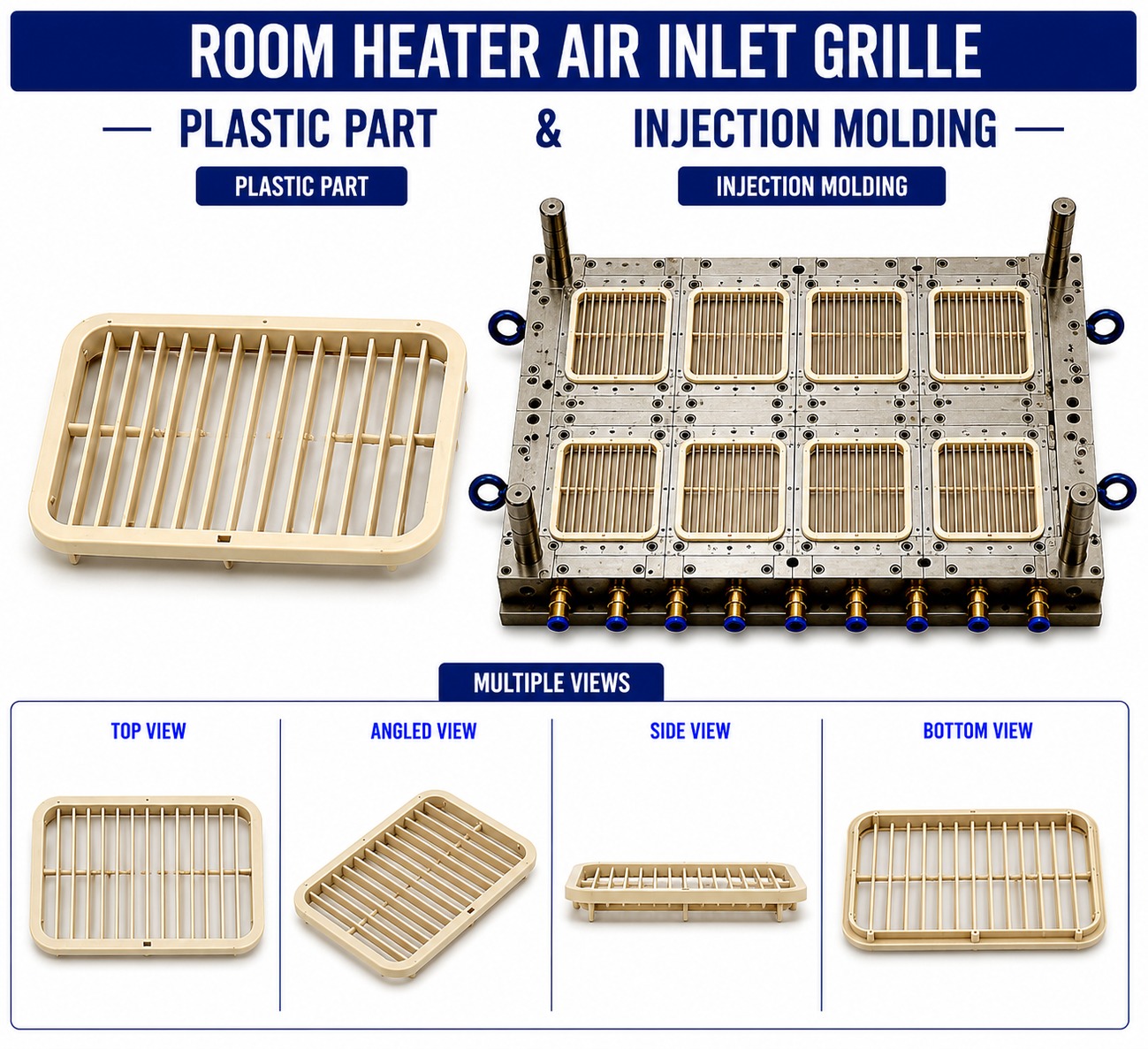

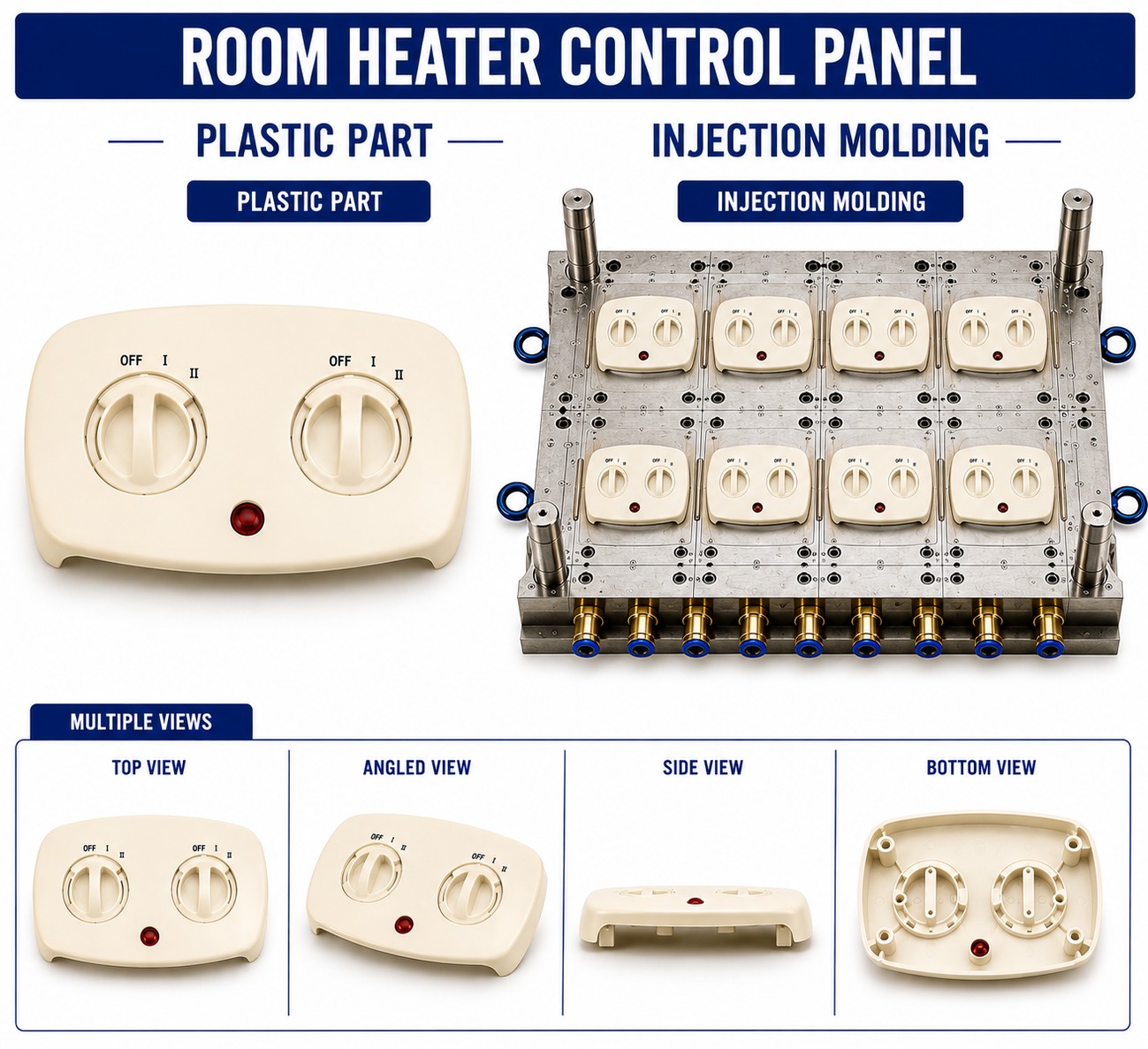

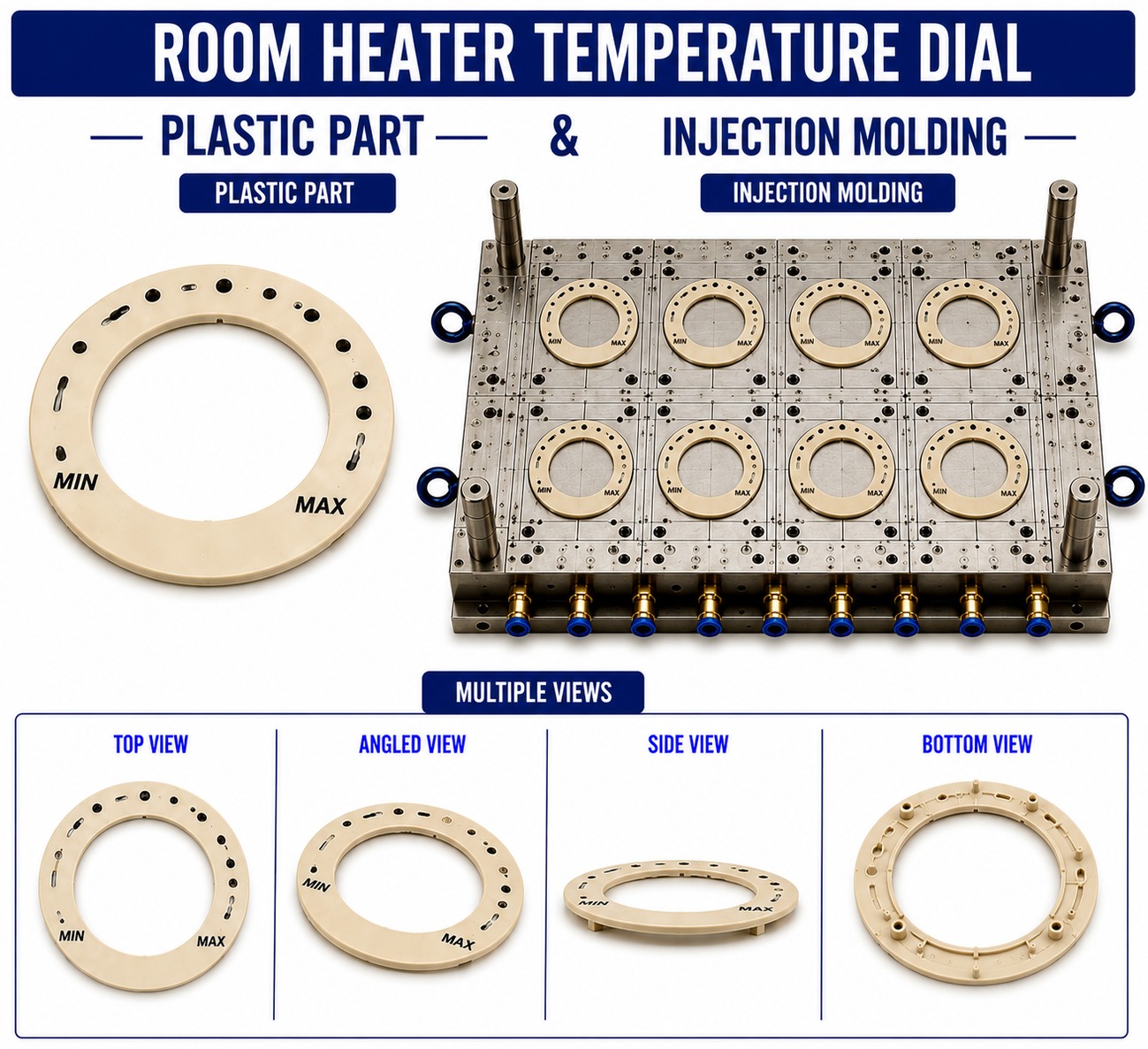

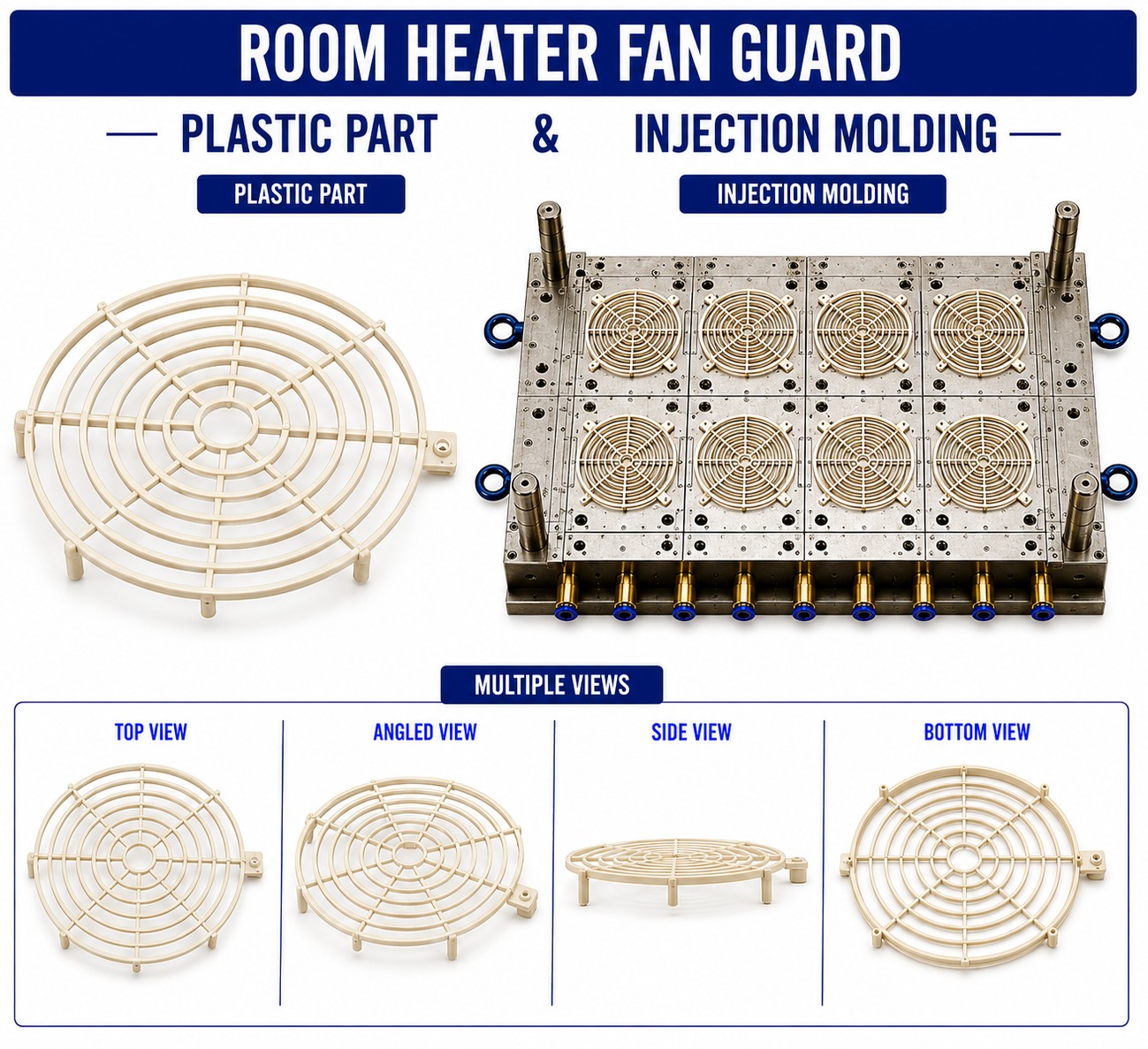

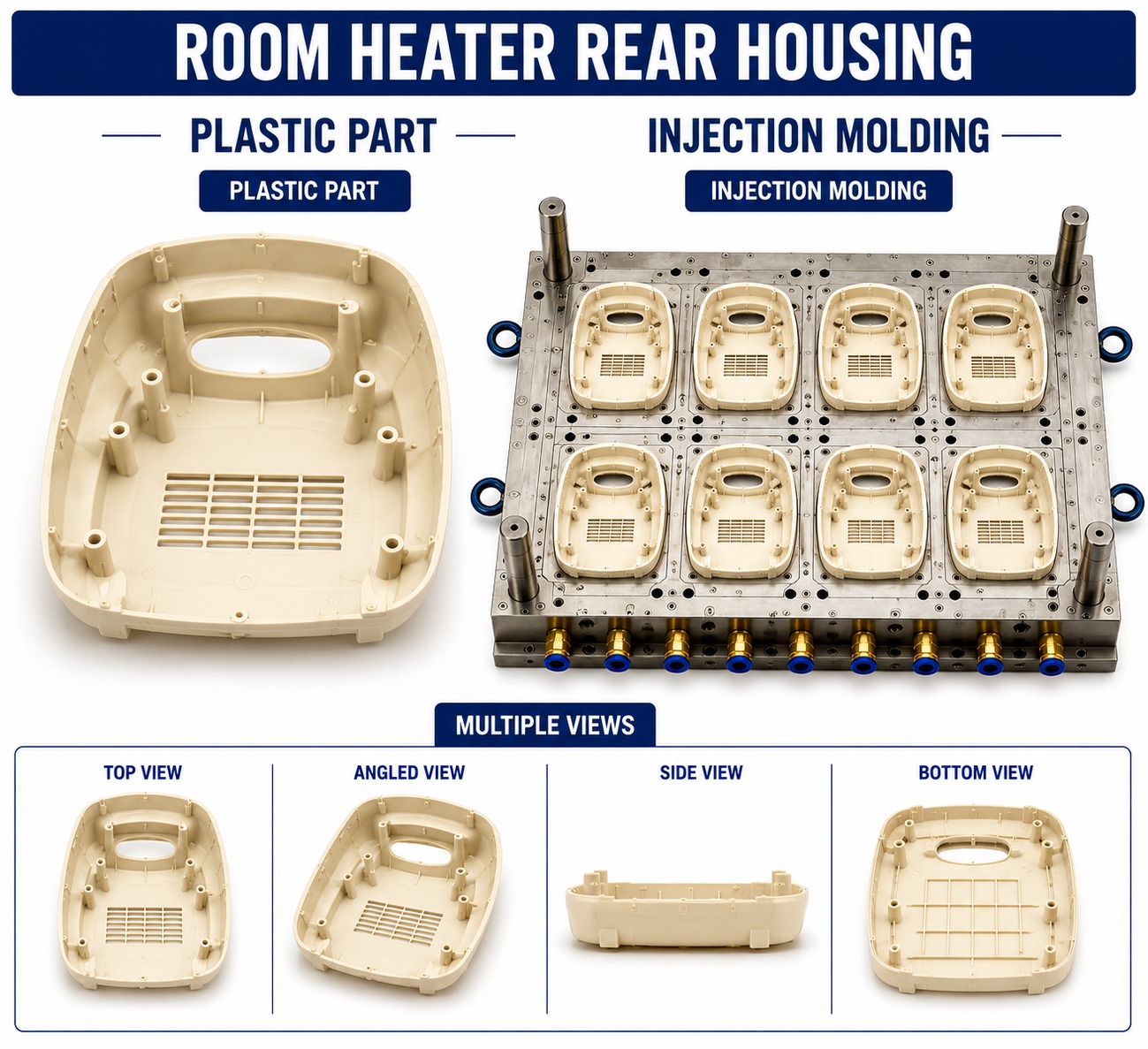

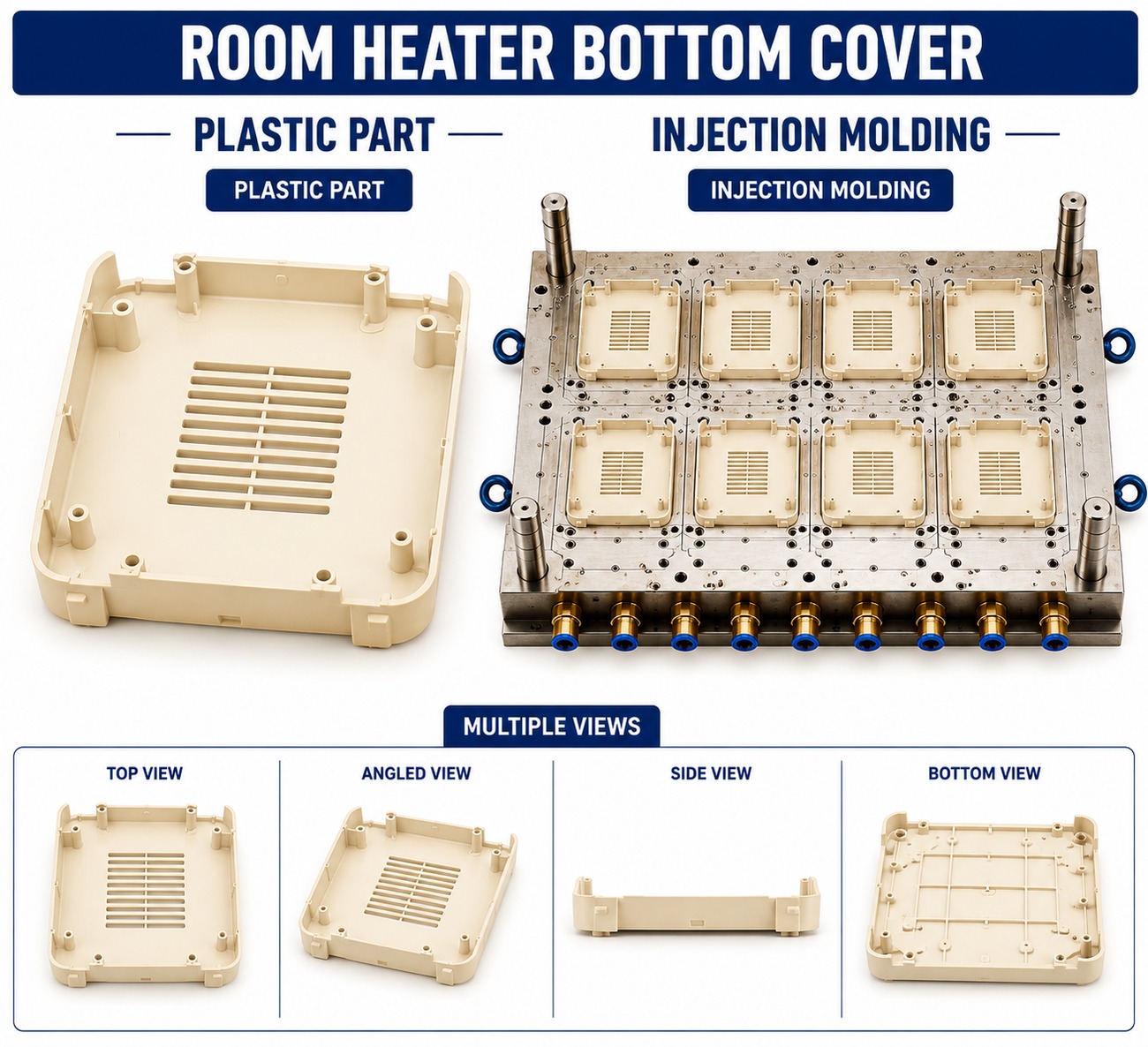

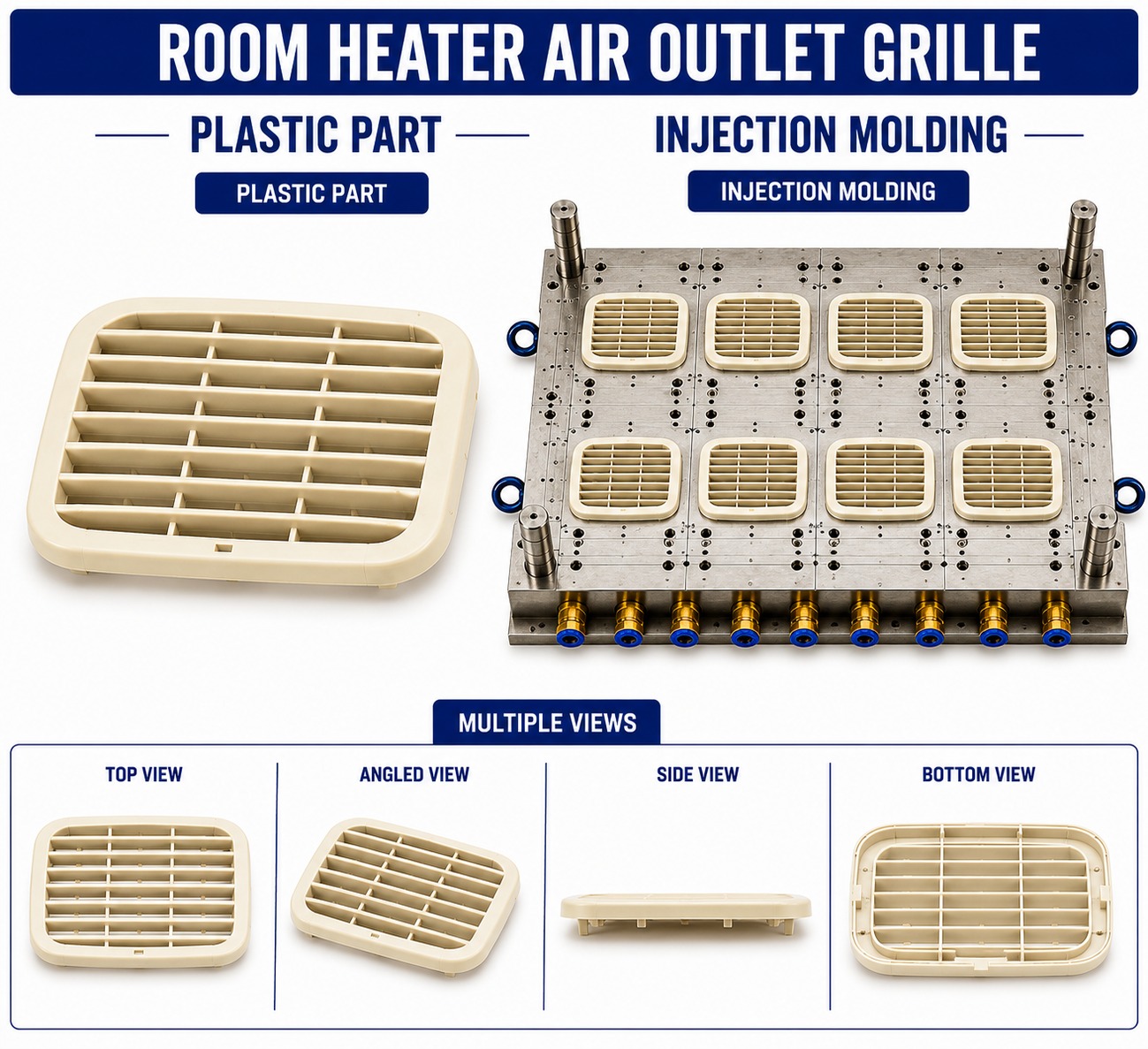

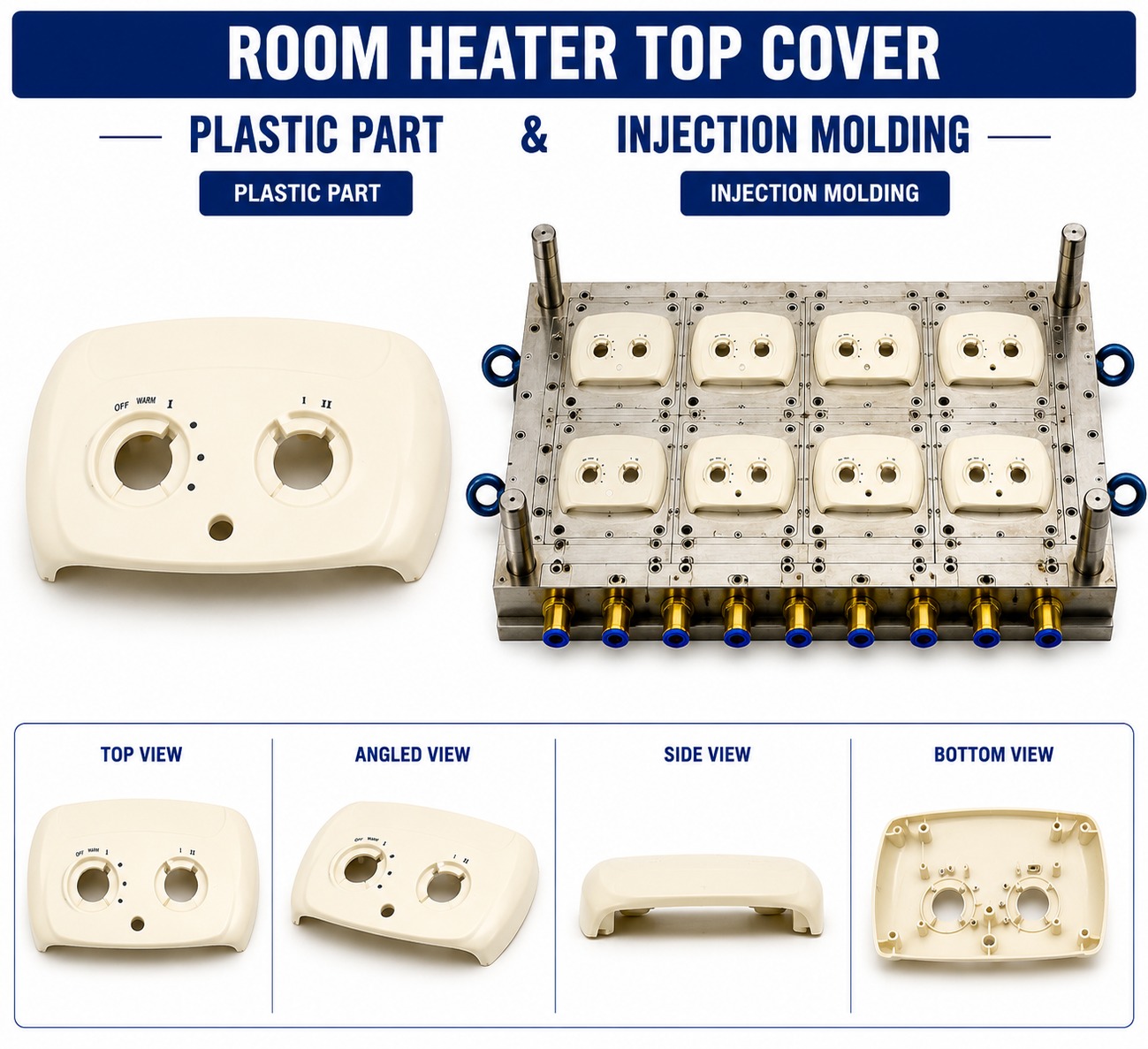

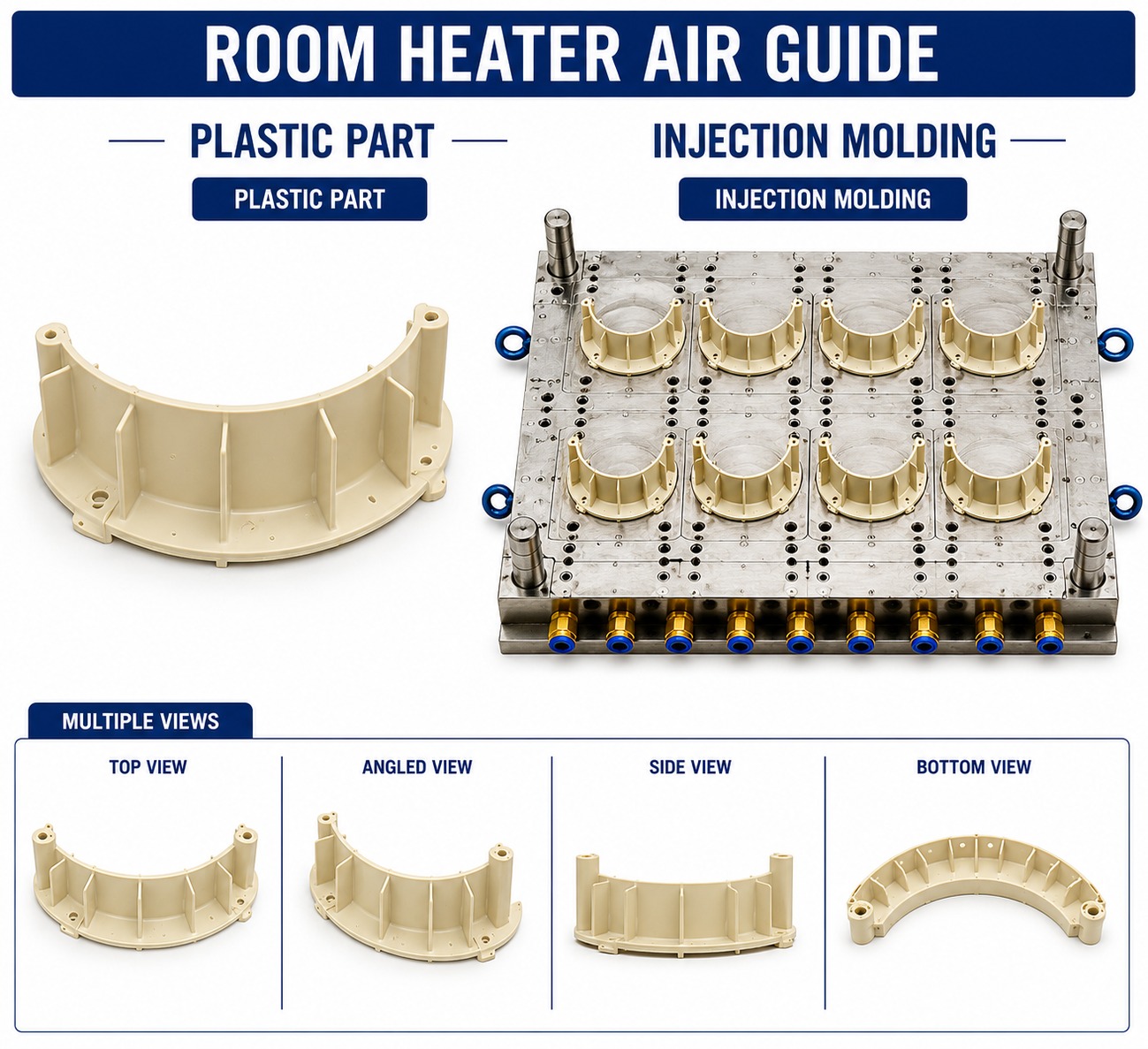

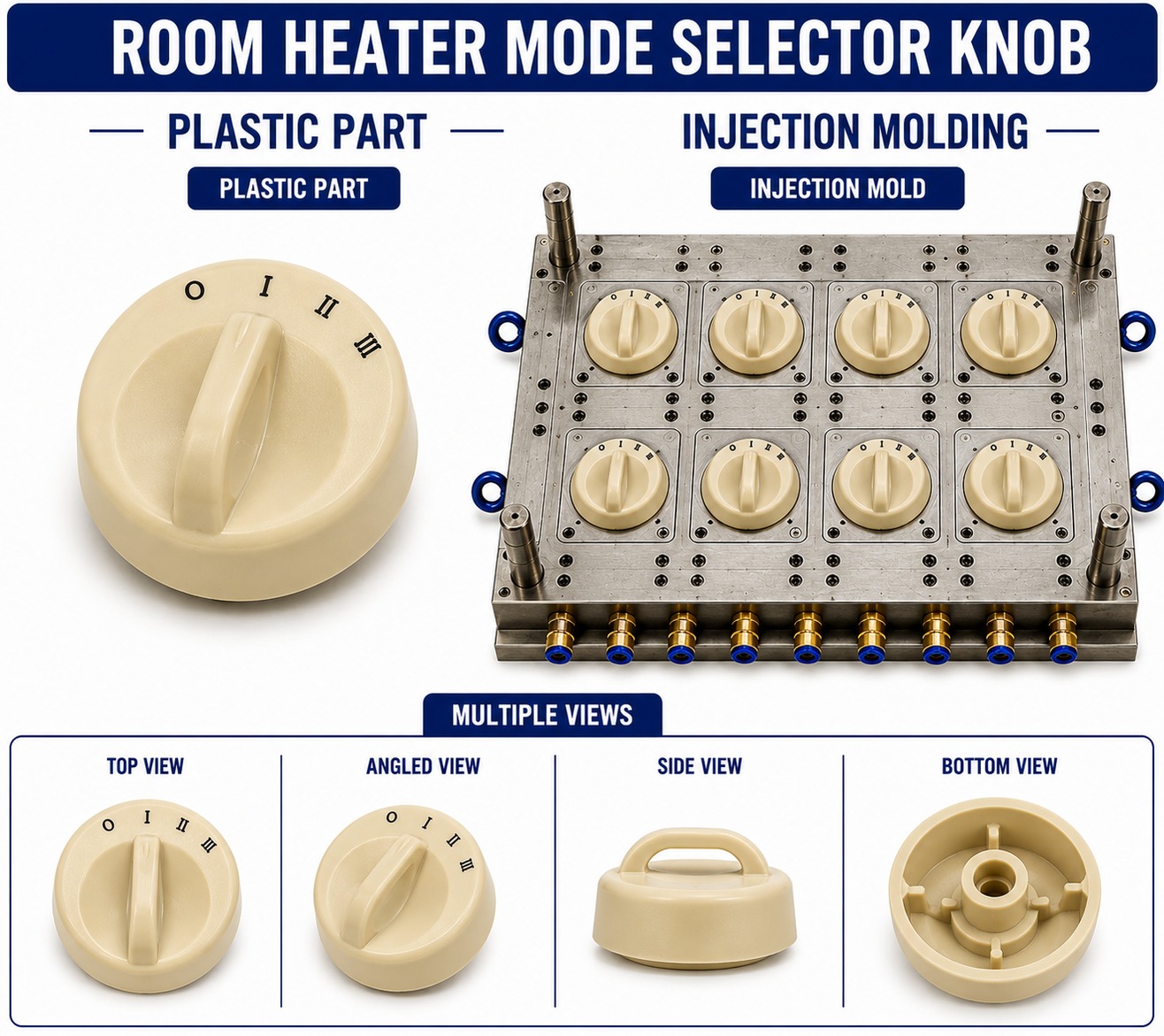

Depending on the heater design, plastic injection-moulded components can include front housing, rear housing, side panels, top cover, bottom cover, control panel housing, thermostat knob, selector knob, switch bezel, indicator holder, fan housing, air guide, grille frame, cord clip, internal support bracket, feet, cable guide, and heating-element support components.

Renovator Appliances Ltd provides complete Room Heater Plastic Parts Mould and Moulding Services, including product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, heat-related validation, assembly fitment testing, and bulk OEM production.

The plastic parts can be customized according to 2D drawings, 3D CAD files, existing samples, dimensions, heater wattage, heating-element arrangement, fan configuration, mounting requirements, colour, surface finish, and customer specifications.

Key Features

The Room Heater Plastic Parts can be developed according to the specific structural and functional requirements of electric room heaters.

Key features include:

• Precision injection-moulded plastic components

• Customized according to specific room heater designs

• Lightweight and durable construction

• Accurate and repeatable dimensions

• Customized mounting bosses and locating features

• Snap-fit, clip, and screw-mounting provisions

• Customized airflow openings and grille patterns

• Heat-resistant plastic material options

• Flame-retardant material options where required

• Customized colours and surface finishes

• Suitable for OEM and bulk production

• Multiple thermoplastic material options

• Consistent production using precision-engineered moulds

Industrial Applications

Room Heater Plastic Parts are primarily used in electric heating appliances for residential, commercial, and portable heating applications.

Typical applications include:

• Electric Room Heaters

• Fan Heaters

• PTC Room Heaters

• Ceramic Room Heaters

• Portable Electric Heaters

• Convector Heaters

• Blower Heaters

• Compact Household Heaters

• Commercial Electric Heating Appliances

• OEM Room Heater Assemblies

Depending on the heater design, moulded plastic components can support airflow direction, heating-element mounting, fan assembly, user controls, electrical wiring, cabinet protection, and appliance stability.

Manufacturing Process

Room Heater Plastic Parts are manufactured through a controlled plastic injection moulding process.

1. Product Design

The required component is designed according to the room heater's overall dimensions, heating-element arrangement, airflow path, mounting points, wall thickness, ribs, bosses, clips, and assembly requirements.

2. Material Selection

A suitable thermoplastic is selected according to the component's required heat resistance, flame resistance, rigidity, impact resistance, dimensional stability, surface appearance, and operating conditions.

3. Plastic Preparation

The selected plastic granules are prepared according to the resin manufacturer's processing requirements and supplied to the injection moulding machine.

4. Injection

The plastic is heated and converted into molten material before being injected into the mould cavity under controlled pressure and temperature.

5. Filling and Packing

The molten plastic fills the cavity and holding pressure is applied to maintain the required component geometry and reduce shrinkage.

6. Cooling

The mould cooling system removes heat from the plastic until the component reaches sufficient rigidity for safe ejection.

7. Ejection

The mould opens and the finished component is ejected using the designed ejector mechanism.

8. Finishing and Inspection

The component is inspected for flash, warpage, sink marks, short shots, cracks, dimensional accuracy, surface finish, and assembly fitment. Any necessary trimming or finishing is completed before final inspection.

Mould Manufacturing Process

The Room Heater Plastic Parts Mould is manufactured according to the individual component geometry, production volume, injection machine capacity, expected mould life, surface finish, and heat-related application requirements.

1. Product and Mould Design

Customer drawings, CAD files, samples, or product measurements are used to develop the mould. The cavity, core, parting line, gating system, cooling channels, ejection system, and mould inserts are designed accordingly.

2. Mould Material Selection

Suitable mould steel such as P20 Steel, H13 Steel, or S136 Steel can be selected according to production volume, component complexity, expected mould life, and required surface finish.

3. Precision Machining

Cavity, core, inserts, and other mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing.

4. Cooling System

Cooling channels are designed to provide controlled cooling and reduce dimensional variation, particularly for larger heater housings and components with uneven wall thickness.

5. Ejection System

Ejector pins, plates, inserts, or other suitable mechanisms are incorporated according to the component geometry.

6. Mould Assembly

The cavity, core, guides, cooling system, gating system, inserts, and ejection components are assembled and accurately aligned.

7. Mould Trial

Trial production is performed to evaluate plastic filling, cooling, ejection, dimensions, surface finish, warpage, and assembly fitment.

8. Final Tool Correction

Any corrections identified during mould trials are completed before the mould is released for regular production.

Raw Materials

Raw material selection depends on the specific Room Heater Plastic Part and its proximity to heating elements, fan motors, electrical components, and airflow passages.

Potential materials include:

• ABS – Acrylonitrile Butadiene Styrene

• PP – Polypropylene

• HIPS – High Impact Polystyrene

• PC/ABS – Polycarbonate ABS Blend

• PBT – Polybutylene Terephthalate

• PA/Nylon – Polyamide

• Heat-Resistant Thermoplastic Grades

• Flame-Retardant Thermoplastic Grades

For components installed near heating elements or hot airflow, a suitably rated heat-resistant and/or flame-retardant grade should be selected according to the actual operating temperature and applicable product safety requirements.

Quality Control

Quality control for Room Heater Plastic Parts can include inspection of:

• Overall length, width, and height

• Critical mounting dimensions

• Wall thickness

• Boss and rib dimensions

• Clip and snap-fit dimensions

• Heating-element clearance

• Fan and motor fitment

• Airflow openings

• Switch and control alignment

• Surface finish

• Colour consistency

• Warpage and deformation

• Flash and burrs

• Sink marks

• Short shots

• Cracks

• Moulding defects

• Assembly fitment

• Batch-to-batch dimensional consistency

Where required, parts can also undergo heat-exposure, dimensional stability, flame-related, or assembly validation according to customer specifications and applicable product requirements.

Production Capacity

Production capacity depends on the part size, product weight, mould cavity count, injection moulding machine capacity, plastic material, mould design, cycle time, and production efficiency.

For example, a 4-cavity mould operating with a 25-second cycle has a theoretical output of approximately 576 pieces per hour, before accounting for machine downtime, quality inspection, material handling, mould maintenance, and other production losses.

Large room-heater housings may use single-cavity or low-cavity moulds, while smaller components such as knobs, clips, supports, and holders can be manufactured using multi-cavity tooling.

Final production capacity should be established according to the actual component weight, cavity count, cycle time, machine capacity, and required monthly or annual production volume.

Buyer Guide

Before ordering a Room Heater Plastic Parts Mould and Moulding Service, buyers should provide:

• 2D product drawing

• 3D CAD model

• Existing product sample, if available

• Room heater model and heating capacity

• Product dimensions

• Target component weight

• Required plastic material and grade

• Heating-element location

• Fan and motor arrangement, where applicable

• Required colour

• Surface finish requirements

• Critical dimensional tolerances

• Mounting and assembly details

• Required production quantity

• Expected monthly or annual production volume

For parts located close to heating elements, buyers should provide the heating-element location, operating temperature, airflow temperature, required clearances, and applicable material requirements.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic components used in room heaters and other home appliances.

Our service can include:

• Customized product development

• Plastic injection mould design

• Precision mould manufacturing

• Mould trials and validation

• Plastic injection moulding

• Material selection support

• Dimensional quality inspection

• Assembly fitment testing

• Heat-related validation where required

• OEM and bulk production

• Customized colours and surface finishes

Our focus is on producing consistent Room Heater Plastic Parts according to customer drawings, samples, technical specifications, appliance requirements, and production volumes.

Frequently Asked Questions (FAQ)

1. What are Room Heater Plastic Parts?

Room Heater Plastic Parts are injection-moulded components used in electric heaters for housing, airflow management, control interfaces, wiring protection, internal support, mounting, and other structural functions.

2. Which materials can be used for Room Heater Plastic Parts?

Depending on the application, ABS, PP, HIPS, PC/ABS, PBT, PA/Nylon, and suitable heat-resistant or flame-retardant thermoplastics can be considered. Final material selection depends on heat exposure, rigidity, dimensional stability, impact resistance, and safety requirements.

3. Can Room Heater Plastic Parts be customized?

Yes. Components can be customized according to 2D drawings, 3D CAD files, samples, dimensions, heating-element clearance, mounting points, ribs, bosses, clips, colour, and surface finish.

4. Which Room Heater components can be manufactured through injection moulding?

Depending on the design, injection moulding can be used for components such as front housing, rear housing, side panels, top cover, bottom cover, control panel housing, switch bezel, thermostat knob, fan housing, air guide, grille frame, cord clip, internal support bracket, and foot components.

5. Can Renovator provide both mould manufacturing and finished Room Heater Plastic Parts?

Yes. Renovator can provide an integrated service covering product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, heat-related validation where required, assembly testing, and bulk OEM production according to customer requirements.
