Air Purifier Plastic Aroma Pad Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

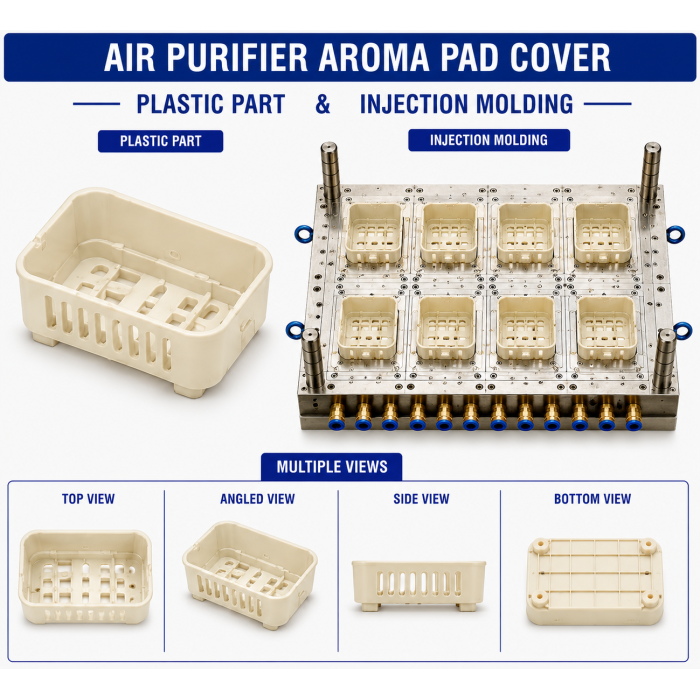

Air Purifier Plastic Aroma Pad Cover is a precision injection-moulded plastic component used to cover and protect an aroma pad or fragrance medium installed inside a compatible air purifier or air-treatment appliance. It helps maintain the aroma pad in its designated position while providing a controlled protective interface around the fragrance area.

The cover can be designed according to the aroma pad dimensions, thickness, mounting position, ventilation requirements, retention method, and surrounding housing geometry. It can include ventilation slots, perforations, retaining tabs, snap-fit clips, locating ribs, mounting features, and access sections according to the appliance design.

Renovator Appliances Ltd provides complete Air Purifier Plastic Aroma Pad Cover Mould and Moulding Services, including product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, aroma-pad fitment testing, assembly validation, and bulk OEM production.

Key Features

The Air Purifier Plastic Aroma Pad Cover provides a protective covering over the aroma pad while maintaining the required exposure of the fragrance medium to the surrounding air.

The cover can include ventilation openings, perforated sections, retaining tabs, snap-fit features, locating ribs, mounting clips, hinges, and release features according to the product design.

The ventilation pattern can be customized to provide the desired air access around the aroma pad while helping prevent direct contact with the fragrance medium. The cover can also be designed for easy removal during aroma-pad replacement or servicing.

Different colours, textures, gloss levels, and surface finishes can be provided to coordinate with the surrounding air purifier housing.

Industrial Applications

The Air Purifier Plastic Aroma Pad Cover can be used in compatible air-treatment appliances incorporating an aroma or fragrance feature.

Typical applications include:

• Domestic Air Purifiers

• Smart Air Purifiers

• Aroma-Function Air Purifiers

• Air Purifier and Humidifier Combination Units

• Residential Air Treatment Appliances

• Portable Air Treatment Systems

• Commercial Air Treatment Equipment

• Air Quality and Fragrance Appliances

• OEM Air Purification Equipment

• Customized Air Treatment Products

The exact cover design depends on the aroma pad size, fragrance-medium construction, airflow arrangement, cover location, mounting method, and surrounding appliance housing.

Manufacturing Process

The Air Purifier Plastic Aroma Pad Cover is manufactured through a controlled plastic injection moulding process.

First, the cover is designed according to the aroma pad dimensions, required ventilation area, retaining method, mounting position, and surrounding housing geometry. Ventilation openings, clips, locating features, and access features are incorporated into the product design.

A suitable thermoplastic material is selected according to the required rigidity, dimensional stability, moisture resistance, temperature exposure, and application conditions. The material is prepared according to its processing requirements and fed into the injection moulding machine.

The plastic is heated and injected into the precision mould cavity. The mould forms the cover profile, ventilation openings, retaining features, mounting points, clips, locating ribs, and other required details.

After filling and packing, controlled cooling is applied to minimize shrinkage and warpage. The mould then opens and the finished cover is ejected.

The moulded cover is inspected for aroma-pad clearance, ventilation-opening accuracy, mounting dimensions, flash, warpage, surface quality, and assembly fitment.

Mould Manufacturing Process

The Air Purifier Plastic Aroma Pad Cover Mould is designed according to the cover dimensions, aroma-pad interface, ventilation pattern, retaining mechanism, wall thickness, mounting arrangement, production quantity, and expected mould life.

The mould incorporates the required cavity, core, parting line, gating system, cooling channels, and ejection mechanism. Particular attention is given to ventilation openings and retaining features because these areas require consistent moulding and dimensional accuracy.

For designs containing undercuts, snap-fit clips, hinge features, locking tabs, or complex ventilation sections, suitable slides, lifters, or mould inserts can be incorporated.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. After mould assembly, trial moulding is performed using the selected plastic material.

Trial components are checked for cover dimensions, ventilation-opening size, retaining-feature accuracy, aroma-pad clearance, mounting features, warpage, flash, surface finish, and complete appliance fitment before production approval.

Raw Materials

The material for an Air Purifier Plastic Aroma Pad Cover should provide adequate rigidity, dimensional stability, moisture resistance, and suitable surface quality.

Depending on the application, PP, ABS, HIPS, PC-ABS, or PBT can be considered. PP may be suitable for lightweight covers, while ABS and HIPS can provide greater rigidity and dimensional stability. PC-ABS or PBT may be selected where higher mechanical or temperature performance is required.

Where the cover may be exposed to fragrance media, oils, or other substances, the final plastic grade should be selected according to chemical compatibility, moisture exposure, operating temperature, required service life, dimensional tolerance, and customer specifications.

Quality Control

Quality control for the Air Purifier Plastic Aroma Pad Cover focuses on accurate fitment, ventilation geometry, retention, and cosmetic quality.

The finished cover can be checked for:

• Overall Length

• Overall Width

• Overall Height

• Aroma-Pad Clearance

• Ventilation-Opening Dimensions

• Wall Thickness

• Retaining-Feature Dimensions

• Clip Dimensions

• Mounting Features

• Housing Fitment

The moulded cover is also inspected for flash, short shots, sink marks, cracks, warpage, burrs, weld lines, flow marks, scratches, and other surface defects.

Functional testing can be performed using the actual aroma pad, holder or tray, housing, clips, and surrounding components to verify secure retention, appropriate clearance, and easy removal.

Production Capacity

Production capacity depends on the cover size, product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, mould design, and overall production efficiency.

Because aroma pad covers are generally compact components, multi-cavity moulds can be considered for higher-volume production where the geometry and dimensional requirements permit it.

For example, an 8-cavity mould operating with a 20-second cycle has a theoretical output of approximately 1,440 pieces per hour before inspection, material handling, machine downtime, mould maintenance, and other production losses.

Final production capacity should be established according to the actual product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering an Air Purifier Plastic Aroma Pad Cover Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, existing cover sample, aroma pad, holder/tray, or complete aroma assembly.

Important specifications include pad length, width, thickness, cover dimensions, ventilation requirements, retaining method, mounting arrangement, opening/closing method, housing dimensions, material compatibility, plastic material, colour, surface finish, dimensional tolerances, and production quantity.

Providing the actual aroma pad and surrounding housing is recommended because the cover must maintain the correct clearance, retention, ventilation, and easy replacement.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic covers, trays, holders, ventilation components, and internal appliance parts used in air purifiers and other home appliances.

For the Air Purifier Plastic Aroma Pad Cover, our service covers the complete process from product development and cover design to mould design, precision mould manufacturing, injection moulding, dimensional inspection, aroma-pad fitment testing, assembly validation, surface-quality inspection, and bulk OEM production.

The cover can be developed according to the customer's actual appliance assembly, including specific pad dimensions, ventilation openings, retaining features, mounting arrangement, material grade, colour, surface finish, and production quantity.

This integrated approach helps maintain consistency between the aroma pad, holder or tray, plastic cover, housing, airflow path, mould, plastic material, and final air purifier assembly.

Frequently Asked Questions (FAQ)

1. What is an Air Purifier Plastic Aroma Pad Cover?

An Air Purifier Plastic Aroma Pad Cover is an injection-moulded plastic component used to protect and cover an aroma pad while allowing the required air exposure around the fragrance medium.

2. Which plastic materials are suitable for an Aroma Pad Cover?

Depending on the application, PP, ABS, HIPS, PC-ABS, or PBT can be considered. Material selection depends on rigidity, moisture resistance, temperature, chemical compatibility, dimensional stability, and assembly requirements.

3. Can the Aroma Pad Cover be customized?

Yes. The cover can be customized according to pad dimensions, ventilation openings, retaining features, mounting arrangement, hinge or snap-fit design, colour, texture, and surface finish.

4. Can the cover be designed for easy aroma-pad replacement?

Yes. The cover can incorporate suitable clips, hinges, tabs, or release features to allow convenient access to the aroma pad while maintaining secure retention during operation.

5. Can Renovator manufacture both the Aroma Pad Cover mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, aroma-pad fitment testing, assembly validation, surface-quality inspection, and bulk production according to customer requirements.
