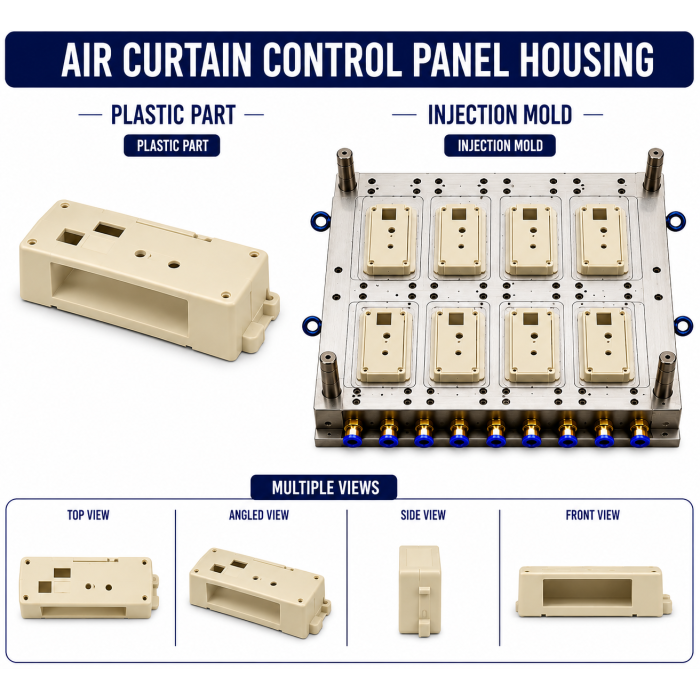

Air Curtain Plastic Control Panel Housing Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd. provides precision Air Curtain Plastic Control Panel Housing Mould and Moulding Service for manufacturing accurately moulded plastic housings used to accommodate and protect control components in air curtain systems and HVAC equipment. The control panel housing forms a structural enclosure around switches, buttons, knobs, indicator lights, displays, wiring, and associated control components.

The housing can be customized according to the air curtain model, control-panel layout, internal component dimensions, mounting arrangement, cable routing, enclosure clearances, and overall product design. Features such as mounting bosses, screw posts, snap-fit clips, locating pins, reinforcing ribs, cable openings, ventilation provisions, and component supports can be incorporated according to the required application.

Our injection moulding solutions support the production of durable and dimensionally consistent control panel housings for OEM, ODM, replacement-part, and bulk manufacturing requirements. The mould can be engineered according to the housing geometry, selected plastic material, wall thickness, surface finish, production quantity, and assembly method.

Key Features

• Precision injection mould development for control panel housing production

• Accurate enclosure dimensions and component fitment

• Customized mounting bosses and screw posts

• Snap-fit clips and locating features

• Internal support structures for control components

• Cable routing and wire-access openings

• Reinforcing ribs for improved structural stability

• Suitable clearance for switches, buttons, knobs, and indicators

• Customized colour, texture, and surface finish

• Lightweight and durable plastic construction

• Single-cavity or multi-cavity mould options

• OEM and ODM manufacturing support

Industrial Applications

Manufacturing Process

Product Design & Development

The control panel housing is developed according to the control component arrangement, enclosure dimensions, mounting points, wiring routes, PCB or switch locations, and available installation space. Internal supports, bosses, ribs, clips, locating features, cable passages, and other functional details can be incorporated according to the application.

Plastic Mould Design

A precision injection mould is designed around the approved housing geometry and selected material. Wall thickness, draft angles, parting line, gate location, cooling channels, ejection arrangement, cavity configuration, and structural features are evaluated to support stable moulding.

Mould Manufacturing

The mould can be manufactured using suitable tooling materials such as P20, H13, or S136 steel according to production volume, component complexity, durability requirements, and surface finish. CNC machining, EDM, drilling, grinding, polishing, and mould fitting processes may be used.

Injection Moulding

The selected plastic material is heated and injected into the mould cavity under controlled processing conditions. After cooling and solidification, the control panel housing is ejected from the mould.

Finishing & Assembly

Moulded housings are inspected for flash, short shots, sink marks, warpage, weld lines, scratches, and other surface defects. Trimming, cleaning, printing, labelling, or assembly operations can be performed where required.

Quality Inspection

Finished housings are inspected for overall dimensions, wall thickness, mounting features, internal clearances, control-component fitment, cable openings, surface quality, and assembly compatibility.

Raw Materials

Material selection should consider housing size, structural loads, mounting requirements, temperature exposure, dimensional stability, impact resistance, surface appearance, and the intended operating environment.

Quality Control

Raw Material Inspection

Plastic resin is checked according to the specified material grade and applicable production requirements before injection moulding.

Mould Inspection

The mould is inspected for cavity dimensions, alignment, parting surfaces, cooling arrangement, ejector operation, and critical housing features.

Dimensional Inspection

Important dimensions such as housing length, width, height, wall thickness, mounting-hole positions, boss dimensions, internal clearances, and component openings are checked against approved specifications.

Visual Inspection

Components are inspected for flash, short shots, sink marks, warpage, weld lines, flow marks, burn marks, scratches, surface imperfections, and colour variation.

Fitment & Functional Inspection

Switches, buttons, knobs, indicator lights, PCBs, wiring, and other associated control components can be checked for proper fitment and alignment within the housing. Mounting and enclosure compatibility can also be evaluated.

Packaging Inspection

Finished control panel housings are packed appropriately to minimize scratches, deformation, dust contamination, and damage during transportation.

Buyer Guide

1. Provide Control Component Details

Share dimensions and locations of switches, buttons, knobs, indicator lights, PCBs, wiring, connectors, and other components installed within the housing.

2. Define Housing and Mounting Requirements

Provide overall housing dimensions, mounting points, screw locations, snap-fit requirements, internal clearances, and enclosure interfaces.

3. Provide Drawings or Samples

2D drawings, 3D CAD files, physical samples, photographs, and existing housing references can be provided for accurate product and mould development.

4. Select the Appropriate Plastic

Material selection should consider structural strength, impact resistance, dimensional stability, temperature exposure, surface finish, and application requirements.

5. Confirm Production Volume

Expected batch quantity and annual demand help determine suitable mould material, cavity configuration, tooling design, and injection moulding strategy.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of precision plastic control panel housings with controlled dimensions and repeatable quality.

In-House Mould Manufacturing

Our mould manufacturing expertise helps maintain control over housing geometry, internal supports, mounting bosses, ribs, openings, ejection, and critical dimensions.

OEM & ODM Manufacturing

Customized control panel housings can be manufactured according to customer drawings, CAD files, physical samples, dimensions, and specific air curtain requirements.

Quality Assurance

Material inspection, mould inspection, dimensional checking, visual inspection, and component fitment evaluation help maintain consistent product quality.

Cost-Effective Manufacturing

Optimized mould design, appropriate material selection, and efficient injection moulding processes support economical manufacturing for different production volumes.

Frequently Asked Questions

1. What is an Air Curtain Plastic Control Panel Housing?

An Air Curtain Plastic Control Panel Housing is a moulded plastic enclosure designed to accommodate, support, and protect control components such as switches, buttons, knobs, indicators, PCBs, and wiring.

2. Which materials can be used for control panel housings?

ABS, PP, HIPS, PC+ABS, PC, PBT, Nylon, Glass-Filled Nylon, and suitable flame-retardant plastics can be considered according to structural, thermal, dimensional, and application requirements.

3. Can the housing be customized according to our air curtain design?

Yes. The housing can be customized according to air curtain dimensions, control-component layout, mounting arrangement, internal clearances, cable routing, CAD drawings, or physical samples.

4. Can internal mounting features be incorporated into the housing?

Yes. Mounting bosses, screw posts, support ribs, locating pins, snap-fit clips, component supports, cable openings, and other internal features can be incorporated according to the approved design.

5. Can you manufacture control panel housings for bulk production?

Yes. Single-cavity or multi-cavity mould solutions can be considered according to housing size, complexity, production quantity, annual demand, and required manufacturing efficiency.
