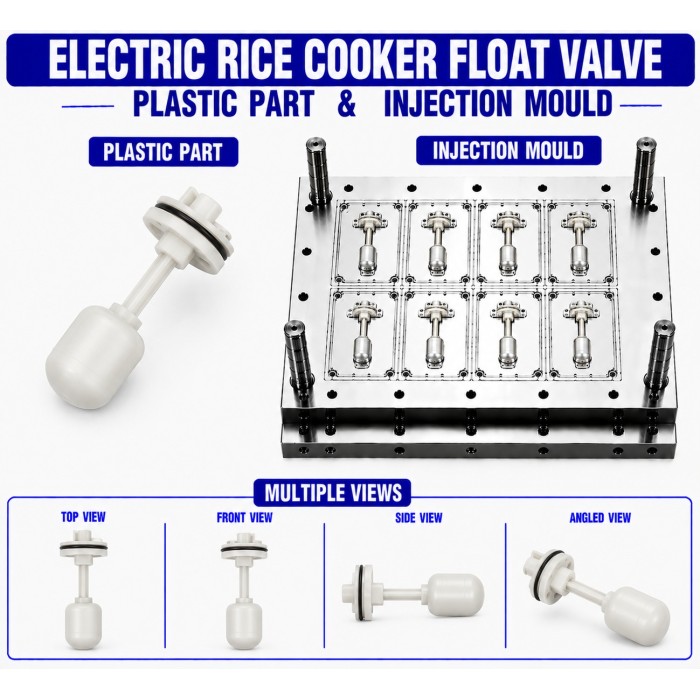

Electric Rice Cooker Plastic Float Valve Mould and Moulding Service

Product Overview

Electric Rice Cooker Plastic Float Valve Mould and Moulding Service is used for manufacturing precision plastic float valve components designed for electric rice cooker water or pressure-management systems. The float valve component can move according to changes in pressure or position and may interact with a valve mechanism to regulate or indicate operating conditions.

The float valve can be manufactured according to specific float dimensions, valve stem interface, sealing geometry, movement range, guide arrangement, mounting features, operating temperature, material, colour, and rice cooker design using precision plastic injection moulding.

Key Features

• Precision-moulded plastic float valve component

• Designed for electric rice cooker valve assemblies

• Accurate valve and float geometry

• Controlled movement

• Customized sealing interface

• Accurate guide and mounting features

• Water and steam-resistant material options

• Heat-resistant material options

• Lightweight and durable construction

• Suitable for high-volume production

Industrial Applications

Electric Rice Cooker Plastic Float Valves are used in:

• Electric rice cookers

• Automatic rice cookers

• Pressure rice cookers

• Multifunction cookers

• Digital rice cookers

• Cooker lid assemblies

• Steam and pressure management systems

• Valve assemblies

• Water and steam control mechanisms

• Household kitchen appliances

Manufacturing Process

The Electric Rice Cooker Plastic Float Valve is manufactured using the plastic injection moulding process. Selected plastic granules are fed into an injection moulding machine and heated to the required processing temperature.

The molten plastic is injected into a precision-engineered mould cavity containing the required float profile, valve interface, guide geometry, sealing surfaces, and mounting features. Controlled cooling allows the plastic to solidify into the required shape.

After cooling, the mould opens and the finished float valve component is ejected. The moulded component is inspected for overall dimensions, valve movement, guide fit, sealing geometry, mounting accuracy, surface finish, flash, sink marks, and warpage.

Mould Manufacturing Process

The mould is designed according to the required product drawing or 3D CAD model. Particular attention is given to the float geometry, valve-seat interface, sealing surfaces, guide passage, stem interface, mounting features, wall thickness, draft angles, parting line, cooling channels, and ejection mechanism.

Suitable mould steel such as P20, H13, or S136 can be selected according to production volume, component complexity, mould life, and required surface finish.

Mould components are manufactured using CNC machining, EDM, precision drilling, grinding, polishing, and precision fitting. After mould assembly, trial moulding is performed to verify filling, cooling, ejection, dimensions, movement, valve interface, sealing fit, surface appearance, and assembly compatibility.

Raw Materials

Suitable materials may include:

• POM

• PBT

• PA66 Nylon

• PPS

• PP

• PEEK where required

• PC

• Heat-resistant engineering plastics

• Glass-filled engineering plastics

• Food-contact suitable grades where applicable

Material selection depends on temperature exposure, steam and water contact, dimensional stability, mechanical strength, wear resistance, and appliance requirements.

Quality Control

The Float Valve can be inspected for:

• Overall dimensions

• Float dimensions

• Valve interface dimensions

• Valve-seat geometry

• Sealing-surface accuracy

• Guide dimensions

• Movement range

• Mounting accuracy

• Product weight

• Water and steam resistance

• Surface finish

• Flash and burrs

• Warpage

• Cracks and sink marks

• Assembly compatibility

Production Capacity

Production capacity depends on mould cavity count, injection moulding machine capacity, product weight, cycle time, cooling time, plastic material, and machine operating efficiency.

For example, an 8-cavity mould operating with a 20-second cycle time can theoretically produce approximately 1,440 pieces per hour, before accounting for downtime, inspection, material changes, and other production losses.

Actual production capacity depends on the final float valve design, mould configuration, machine specifications, material, and operating conditions.

Buyer Guide

When ordering an Electric Rice Cooker Plastic Float Valve Mould and Moulding Service, buyers should provide the product drawing or 3D CAD model, float dimensions, valve-stem dimensions, sealing requirements, guide dimensions, movement range, mounting arrangement, operating temperature, water or steam exposure, plastic material, colour, expected production quantity, and assembly specifications.

For valve applications, buyers should also specify the required operating pressure, sealing performance, valve travel, leakage requirements, and interaction with the associated valve mechanism.

These details help determine the appropriate mould design, mould steel, cavity configuration, plastic material, and injection moulding machine.

Why Choose Renovator Appliances Ltd.?

• Customized float valve mould development

• Precision plastic injection moulding

• Accurate valve and float geometry

• Precise guide and sealing interfaces

• Controlled dimensional tolerances

• Heat-resistant engineering plastic options

• Water and steam-resistant material options

• Food-contact suitable material options where required

• Single-cavity and multi-cavity mould solutions

• High-volume production support

Frequently Asked Questions (FAQ)

1. What is an Electric Rice Cooker Plastic Float Valve?

An Electric Rice Cooker Plastic Float Valve is a plastic component used within a valve mechanism of an electric or pressure rice cooker. Its movement can interact with the valve system to help regulate or indicate operating conditions.

2. Which plastic materials can be used for the float valve?

Common materials include POM, PBT, PA66 Nylon, PPS, PP, PC, and other suitable heat-resistant engineering plastics. Material selection depends on temperature, steam and water exposure, wear, strength, and dimensional requirements.

3. Can the float valve be customized?

Yes. It can be customized according to float dimensions, valve interface, sealing geometry, guide arrangement, movement range, mounting features, operating pressure, material, colour, and surface finish.

4. Can food-contact suitable materials be used?

Yes. Where the component has applicable food or water contact requirements, an appropriate food-contact suitable plastic grade can be selected according to the intended application and applicable specifications.

5. Does Renovator Appliances Ltd. provide both mould manufacturing and moulding services?

Yes. Renovator Appliances Ltd. provides customized plastic mould manufacturing and injection moulding services for Electric Rice Cooker Plastic Float Valves according to customer drawings, 3D models, material specifications, and production requirements.
